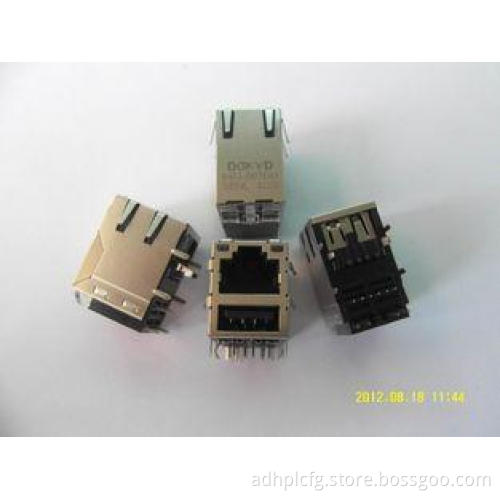

Custom 1 Port Tab Up Transformer RJ45 with single USB , RJ4

Custom 1 Port Tab Up Transformer RJ45 with single USB , RJ45 Connectors, RJ45 Single Port

P/N:KRJ-007DUSBNL

Descrition:

• 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with USB
• Single port 1X1 Tab-Up RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :0℃ to +70℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:10
• Number of contacts loaded:8
• Shield:YES
• Rohs compliant
• Length:29.0mm
• LEDS:YES
• EMI fingers:YES
• LEFT:Green/Orange,RIGHT:Yellow
• Usage:KRJ-007DUSBNL

Applications:

• Part number :KRJ-007DUSBNL main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,

IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,

DSL/ADSL and so on.

For example:

Mechanical Dimensions:(Unit:mm)

.XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

PCB Layout Mouting Hole:(Unit:mm)

.XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

Specifications:

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT Black (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications at 25℃:

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

Schematic:
