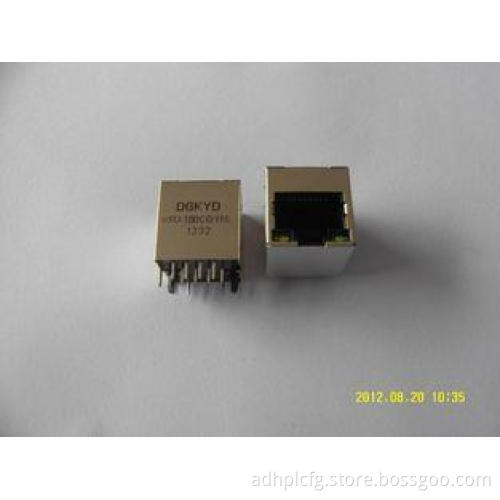

180 degree 10/100 BASE Tab-Up RJ45 Single Port Moudlar plug with led
P/N:KRJ-180CGYNL
Descriptions:
- 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with top entry
- Single port 1X1 Tab-Up 180 degree RJ45 with internal magnetics
- Internal magnetics are 100% electrically tested for HI-POT and functionality
- 350uHminimum OCL with 8mA bias current
- High performance for maximum EMI suppression
- Minimum 1500Vrms isolation per IEEE 802.3 requirement
- ROHS-6 peak wave solder temperature rating 260℃
- Operating temperarure range :0℃ to +70℃
- Storage temperature range :-40℃ to +85℃
- Number of positions:8
- Number of contacts loaded:8
- Shieded:YES
- Rohs compliant
- Length:18.75mm
- LEDS:YES
- EMI finger:NO
- LEFT:Green,RIGHT:Yellow
- Usage:KRJ-180CGYNL
Mechanical Dimensions:(Unit:mm)
. XX Tolerance:+/-0.25
.XXX Tolerance:+/-0.13
Electrical Specifications at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA DC
Schematic:
Material specifications:
- Plastic core:Glass fiber filler PBT Black(UL94V-0)
- Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
- PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
- Housing:Phenolic, PBT Black (UL94V-0)
- Metal shell:Copper Alloy ,Tin and Nickel plated
Applications:
Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,
IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,
DSL/ADSL and so on.
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
