Integrated 100M Magnetic RJ45 Connector, 1500V AC Tab Down
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

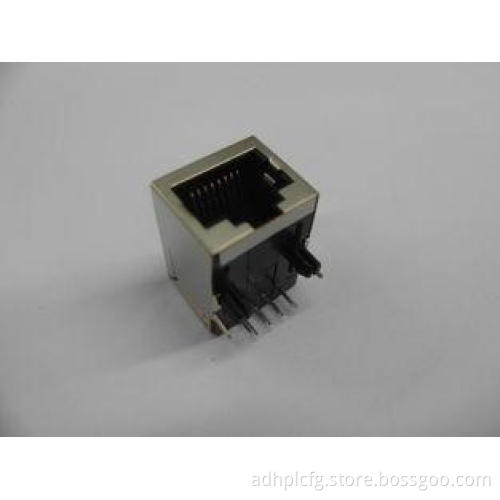

Integrated 100M Magnetic RJ45 Connector, 1500V AC Tab Down 10/100M RJ45 Network Port w/EMI and w/o led
P/N:KRJ-015NL
Descriptions:
- 10/100Base-Tx RJ45 single port 1X1 Vertical w/o LED with side entry
- Single port 1X1 Tab-Down RJ45 with internal magnetics
- Internal magnetics are 100% electrically tested for HI-POT and functionality
- Suitable for CAT5&6 fast Ethernet Cable or better UTP
- 350uHminimum OCL with 8mA bias current
- High performance for maximum EMI suppression
- Minimum 1500Vrms isolation per IEEE 802.3 requirement
- ROHS-6 peak wave solder temperature rating 260℃
- Operating temperarure range :0℃ to +70℃
- Storage temperature range :-40℃ to +85℃
- Number of positions:8
- Number of contacts loaded:8
- Shield:YES
- Rohs compliant
- Length:21.3mm(0.85inch)
- LEDS:NO
- EMI fingers:YES
- Usage:J0011D21NL/KRJ-015NL
Material specifications:
- Plastic core:Glass fiber filler PBT Black(UL94V-0)
- Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
- PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
- Housing:Phenolic, PBT Black (UL94V-0)
- Metal shell:Copper Alloy ,Tin and Nickel plated
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
For example:
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,
100% test, 0 defect, short lead time are our best advantages
