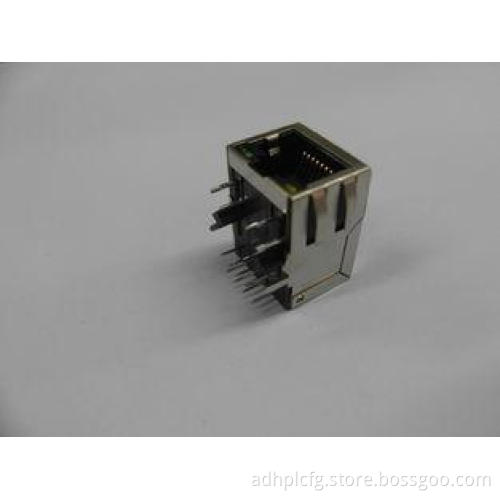

Single port 100M RJ45 Integrated Connector, Tab Down Magnet

Single port 100M RJ45 Integrated Connector, Tab Down Magnetic RJ45, RJ45 Network Connector for Net Bridge Application

P/N:KRJ-010CNL

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.

For example:

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)

• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold

• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl

• Housing:Phenolic, PBT Black (UL94V-0)

• Metal shell:Copper Alloy ,Tin and Nickel plated

Descriptions:

• 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry

• Single port 1X1 Tab-Down RJ45 with internal magnetics

• Internal magnetics are 100% electrically tested for HI-POT and functionality

• Suitable for CAT5&6 fast Ethernet Cable or better UTP

• 350uHminimum OCL with 8mA bias current

• High performance for maximum EMI suppression

• Minimum 1500Vrms isolation per IEEE 802.3 requirement

• ROHS-6 peak wave solder temperature rating 260℃

• Operating temperarure range :0℃ to +70℃

• Storage temperature range :-40℃ to +85℃

• Number of positions:8

• Number of contacts loaded:8

• Shield:YES

• Rohs compliant

• Length:21.3mm(0.85inch)

• LEDS:YES(optional)

• EMI fingers:YES(optional)

• LEFT LED:Green,RIGHT LED:Yellow

• Usage:KRJ-010CNL
