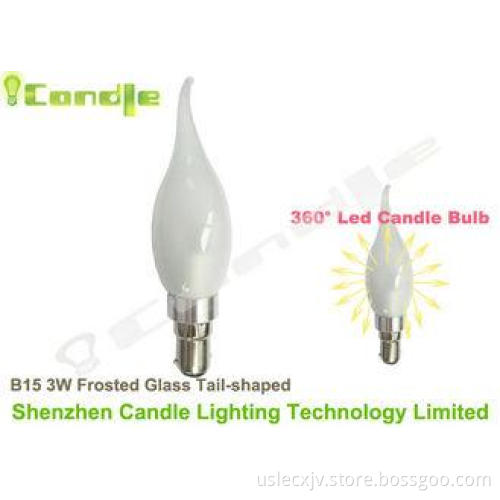

High Brightness Epistar Chip B15 LED Candle Light Bulb 3wat
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China (Mainland) |
|---|
Epistar Chip 1070 Pure Aluminum Led Candle Lamp 3.0 Watts Ground Tail Shaped Glass CE RoHS
Quick Detail:
1. Product name: 3w-B15-Ground Glass- Tail Shaped-Led Candle Bulb
2. Light source: epistar chip smd 2835
3. Heat sink material: 1070 pure aluminum
4. Diffuser: Ground Tail Shaped Glass
5. Heat sink process: Integrated cold forging
6. Heat sink Thermal conductivity: 226W/m.k
Led Candle Lamp Features:
1. New and high quality.
2. Energy-saving and environmentally friendly, high brightness.
3. Low heat generating, no UV or IR light radiation.
4. Seismic, impact resistance, non-thermal radiation, safe and stable, reliable.
5. Suitable for home, office and exhibition lighting.
6. Very low heat generating, besides saving light power.
7. The bulb is safe and stable performance.
8. This bulb body is compact, easy to install.
9. Will save you money not only in replacement lamp costs but also in the electricity consumed.
10. Stable color temperature, excellent color rendering make.
11. Smart constant current control circuit to eliminate flicker and ripple,
12. Excellent heat dissipation design based on aluminum alloy structure, the surface temperature is below 65 ° C, more safe and stable.
13. Long life,over 50000+ hours
Led Candle Lamp Specifications:
|
Item No. |
KDL-CBL-3WB-B15 |
|||||
|
Power Output |
Led 3.0 watt |
|||||
|
Emitting Angle |
360 degrees |
|||||
|
Colour Consistency |
Color Tolerance<6 SDCM |
|||||
|
CCT(Optional) |
Warm white light (2700K-3200k) Natural white light (3500K-5000K) White light (5500K-7000K) |
|||||
|
Conversion Efficiency |
>75% |
|||||
|
Power Factor |
>0.85 |
|||||
|
Operating Temp. |
-20℃-+45℃, |
|||||
|
Size |
Height 135 millimeters * Diameter 35 millimeters |
|||||
|
Operating Life |
50000 Hour |
|||||
|
Warranty Repair |
Three years |
|||||
|
WT |
24 grams |
|||||
|
Pack |
100 Pieces /Carton |
|||||
|
Certificate |
CE certification |
|||||
|
Color Rendering Index(Optional) |
CRI≥65 |
CRI≥70 |
CRI≥80 |
CRI≥90 |
||
|
Lumen |
220-280Lm |
210-270Lm |
210-270lm |
180-240lm |
||
|
Lamp Cap (Optional) |
Material: |
Copper Plating |
copper, iron, aluminum |
|||
|
Type(Optional): |
E10 / E12 / E14 / B15 / E17 / B22 / E26 / E27 |
|||||
|
Light Bulb |
Material: |
shatterproof glass(Special processing technology) |
||||
|
Color(Optional): |
Opal glass / Ground glass / Transparent glass |
|||||
|
Customized design other color |
||||||
|
Optical Source(Optional) |
type: |
5630 / 2835 |
||||
|
Chip brand: |
ES |
customize Cree, HP, Samsung and other brands |
||||
|
Printed Circuit Board |
Thermal conductivity: |
2W/m.K |
||||
|
Thickness: |
1.2mm |
|||||
|
Dimmable(Optional) |
Yes |
No |
||||
|
Vi (Optional) |
AC85V-130V / 50-60HZ AC170V-264V / 50-60HZ |
AC85V-264V / 50-60HZ |
||||
|
Led Driver |
Isolate constant current drive |
|||||
|
Capacitor: |
anti high temperature of 135° |
|||||
|
LED Radiator |
Material: |
1070 aluminum |
||||
|
Thermal conductivity: |
226w/m.k |
|||||
|
Process: |
Integrated cold forging |
|||||
|
Color(Optional): |
aluminum can oxidize any color |
|||||
|
Accessories |
Silicone: |
Imported brands |
||||
|
Thermal grease: |
Imported brands |
|||||
|
Thermal conductivity:6W/m.k |
||||||
Led Candle Lamp Applications
1) Bus, shuttle, railcar passenger interiors
2) Uninterrupted emergency lighting
3) Focused reading and Task lighting
4) Interior design uses
5) Closet illumination
6) Cove lighting
7) Marine recreation applications
8) Concealed accent lighting
9) Edge lighting
10) Under counter lighting
11) Cubicle, workbench lighting
12) Recreational vehicle interiors
