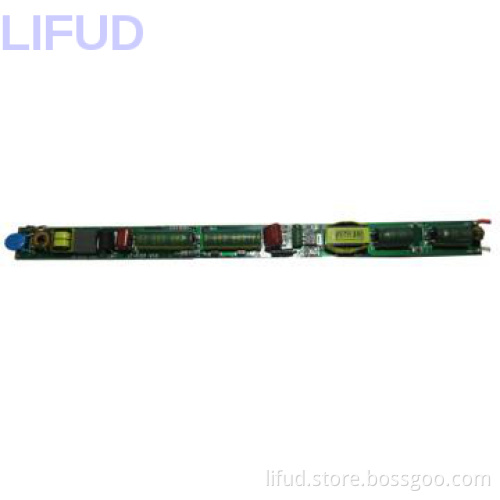

Universal AC input T8 tube driver, non-isolated, CE
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Power | output power 20W (max) |
|---|---|
| Life | 30000 hours, 3 years warranty |
| Dimmable | Yes |
| IP | IP11 |
| Voltage | 90-260V |
Detail Description
- Universal AC input voltage : 100-240Vac, 50HZ / 60HZ
- Output voltage: 30-40Vdc
- Output current 500mA(typ.), 160-500mA available
- Efficiency (Typ.) : 84% (110V), 84% (220V)
- Power factor (Typ.) : 0.90 (110V), 0.85 (220V)
- Size: L*W*H = 249 * 18 * 10mm
- Universal AC input 100-240V, non-isolated tube driver
- Meet CE standards, not have a certification
- open frame, no cover, PC cover is availabl
- 5-20W LED tube driver for T8 tube lights, suitable for 10 ~12 LEDs in series
- 30,000 hours,3 years warranty.
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 50 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | Samples will be charged. The samples (3-10pcs) preparation needs three working days, for order quantities within 1,000 pcs, we need 7-14 days. |
| FOB Port | Shenzhen |
| Loading Info | Freight cost of customers shall be born by customers |
| Packing Info | Packed in standard carton of size L*W*H = 39 x 29 x 21cm. |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
