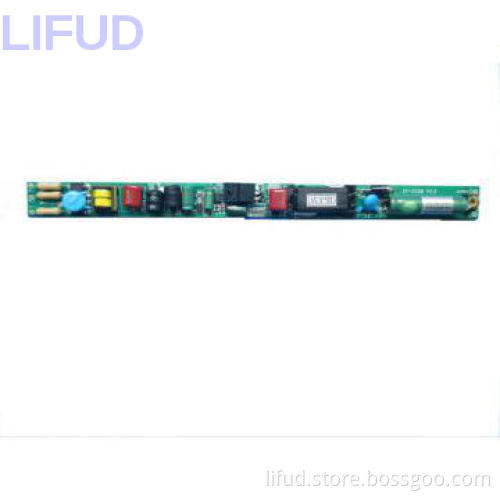

T8 & T10 tube driver, 21W, isolated, four input terminals

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Input voltage : 100-277Vac, 50HZ / 60HZ
Output voltage: 36-40Vdc or 30-35Vdc
Output current 520mA(typ.), 180-540mA available
Efficiency (Typ.) : 86% (110V), 88% (220V)
Power factor (Typ.) : 0.95 (110V), 0.91 (220V)
Size: L*W*H = 248 * 18 * 11mm
Meet CE and UL, FCC standards, but not have a certification
open frame, no cover, PC cover is available
The feature of LF-G309: it has four input terminals and the customer can choose either two for connection
21W LED tube driver for T8 tube lights, suitable for 10 ~12 LEDs in series
30,000 hours,3 years warranty.

Payment Terms	T/T, Western Union
Minimum Order	50
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Samples will be charged. The samples (3-10pcs) preparation needs three working days, for order quantities within 1,000 pcs, we need 7-14 days.
FOB Port	Shenzhen
Loading Info	Freight cost of customers shall be born by customers
Packing Info	Packed in standard carton of size LWH = 39 x 29 x 21cm.
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
