Smart 48V DC Battery Charger for Scooter, E-bike, Golfcart Battery
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Color | Black |
|---|---|
| Case | Aluminium |
| Product name | 48V DC Battery Charger |
| Output Voltage | Other |
| Application | Standard Battery |
| Charge Current | Other |
| Type | Universal |
Detail Description

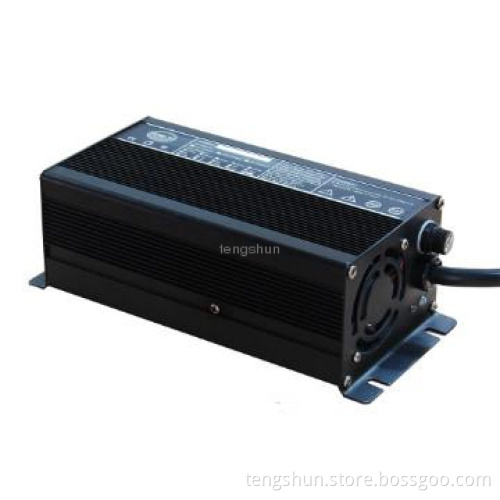

Smart 48V DC Battery Charger for Scooter, E-bike, Golfcart Battery
48V DC Battery Charger
1. Input Plug: EU,US,UK,Australia,Japan,South Korea,CN, customized
2. Output Connector: USB,DCjack, JST, XRL, Alligator Clip,Air plug
3. All kinds of shell are available
4. Certification: UL,CE, FCC, SAA, PSE, ROHS,EK,CB,GS
5. Warranty: two year
48V3A lead acid battery charger
1. Output: 48V3A
2. Size: 160×90 ×50 mm
3. Weight: 1kg
4. Case: Aluminium
Main parameter
Output wattage (max) |
Input voltage |
Output voltage |
Output current |
176W |
220Vac |
58.4V±1%Vdc |
3A±10% |
Technical characteristic
Input characteristic:
No. |
Project |
Technical parameter |
Remarks |
1 |
Rated input voltage |
220Vac |
220Vac |
2 |
Voltage range |
180-240Vac |
|
3 |
Efficiency |
47~63 Hz |
Output characteristic and recharge mode:
No. |
Project |
Technical parameter |
Remarks |
1 |
Constant current |
≤58.4Vdc, 3A |
|
2 |
Constant voltage |
58.4Vdc,3.0A↓ |
|
3 |
Floating voltage |
54.4V |
|
4 |
Transfer current |
0.6A |
|
5 |
Efficiency |
≥85% |
Protection characteristic:
No. |
Project |
Technical parameter |
Remarks |
1 |
Overvoltage protection |
Have |
|
2 |
Voltage-limiting protection |
Output voltage (max) of charger is less than max charging voltage of the battery. |
|
3 |
Overheat protection |
75 °C |
|
4 |
Current-limiting protection |
Have |
CC |
5 |
Short-circuit protection |
Have |
Charging indication
No. |
Project |
State |
Remarks |
1 |
Power |
LED1: red light |
|
2 |
Charging |
LED2: red light |
|
3 |
Completed |
LED2: green light |
|
4 |
Output voltage indication |
NO |
|
5 |
Output current indication |
NO |
Additional Information
| Payment Terms | L/C, T/T, Credit Card, Western Union, Paypal |
|---|---|
| Minimum Order | 100pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time: about 15 days after your order is confirmed by usSamples are abvailable in three days |
| FOB Port | Shenzhen |
| Loading Info | Shipping by sea, air and express are all available |
| Packing Info | Inner package: each in a white boxPcs in a carton: 100pcs/ctn |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
