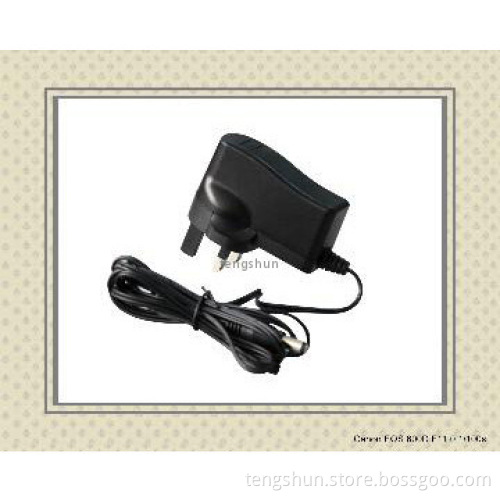

3.7v li ion battery charger

3.7v 1000ma li-ion battery

Input : 100-240V AC 50/60HZ(World use)

Input plugs: EU,US,UK,Australia,Japan,South Korea,CN(With customer’s Demand)

Output:   3.7V1000ma li-ion battery charger

                8.4V500mA li ion battery charger

                12.6V300mA li ion battery charger

CC(2-4.0V, Constant current:1A)---CV(Constant voltage:4.0-4.2V, Current: 1A in decreasing until 120mA)---Trickle(120mA in decreasing to zero amp)

 CC(4-8.2V, Constant current:500mA)---CV(Constant voltage:8.2-8.4V, Current: 500mA in decreasing until 60-80mA)---Trickle(80mA in decreasing to zero amp)

CC(8-12.2V, Constant current:300mA)---CV(Constant voltage:12.2-12.6V, Current: 300mA in decreasing until 50-60mA)---Trickle(60mA in decreasing to zero amp)

Output Connector: USB, DC Jack: 5.5*2.1  5.5*2.5  4.0*1.7  3.5*1.35, Alligator clips,  Anderson plug,  XRL Socket

Certificate Approval: UL, CE, FCC, SAA, PSE, ROHS, EK, CB, GS

Charging Mode: CC—CV(Constant Current—Constant Voltage)

                             Or CC—CV—Trickle Charging(CPU Controlled)

LED Display: Red----In charging state, Green—Full Charged/ no load State

Efficiency:>=85%

Safety Protection: Short-cuirt Protection,Over-current protection,Over-voltage protection,Reversal Protection

Application: LED Torch Flashlight,LED lamps,Electric Bicycle, Mechanical equipment, Portable Electric Device, Phone, MP3/MP4, Boat Device, Rechargeable Bus and so on.
