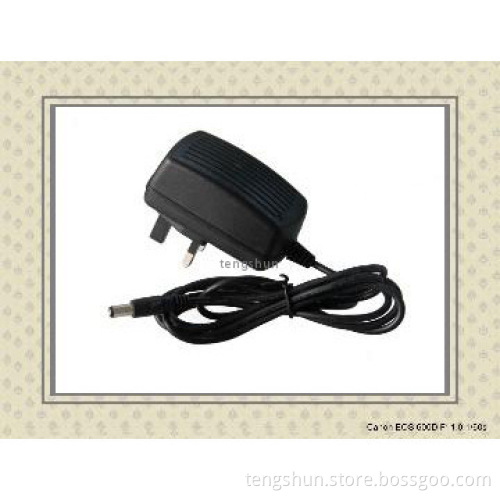

14.8v 7.4v 11.1v li-ion battery charger

11.1v 7.4v 14.8v li-ion battery charger

Input : 100-240V AC 50/60HZ(World use)

Input plugs: EU,US,UK,Australia,Japan,South Korea,CN,South African Input plug(With customer’s Demand)

Output:   4.2V 1.5A li ion battery charger

                8.4V 1.2A li ion battery charger

                12.6V 1A li ion battery charger

                16.8V 500mA li ion battery charger,

Choose your suitable charger for your request:

1. what is the charging voltage of charger you need?

2. what is the charging current of charger you need?

3. what is the output connector of charger you need?

CC(2-4.0V, Constant current:1.5A)---CV(Constant voltage:4.0-4.2V, Current: 1.5A in decreasing until 150mA)---Trickle(150mA in decreasing to zero amp)

 CC(4-8.2V, Constant current:1200mA)---CV(Constant voltage:8.2-8.4V, Current: 1200mA in decreasing until 120mA)---Trickle(120mA in decreasing to zero amp)

CC(8-12.2V, Constant current:1000mA)---CV(Constant voltage:12.2-12.6V, Current: 1000mA in decreasing until 120mA)---Trickle(120mA in decreasing to zero amp)

CC(10-16V, Constant current:500mA)---CV(Constant voltage:16-16.8V, Current: 500mA in decreasing until 80-100mA)---Trickle(80mA in decreasing to zero amp)

Output Connector: USB, DC jack, JST, XRL, Alligator Clip,Air plug and so on(Customized Connector)

Certificate Approval: UL, CE, FCC, SAA, PSE, ROHS, EK, CB, GS

Charging Mode: CC—CV(Constant Current—Constant Voltage)

                             Or CC—CV—Trickle Charging(CPU Controlled)

LED Display: Red----In charging state, Green—Full Charged/No load

Efficiency:>=85%

Safety Protection: Short-cuirt Protection,Over-current protection,Over-voltage protection,Reversal Protection

Application: LED Torch Flashlight,LED lamps,Electric Bicycle, Mechanical equipment, Portable Electric Device, Phone, MP3/MP4, Boat Device, Rechargeable Bus and so on.
