1.5V 4.8V 3.6V NI-MH battery charger CE FCC UL SAA approval

3.6V NI-MH battery charger/NI-MH battery charger/ 4.8V NI-MH battery charger
1. Input Plug: EU,US,UK,Australia,Japan,South Korea,CN, customized

2. Output Connector: USB,DCjack, JST, XRL, Alligator Clip,Air plug

3. All kinds of shell are available

4. Certification: UL,CE, FCC, SAA, PSE, ROHS,EK,CB,GS

5. Warranty: two year

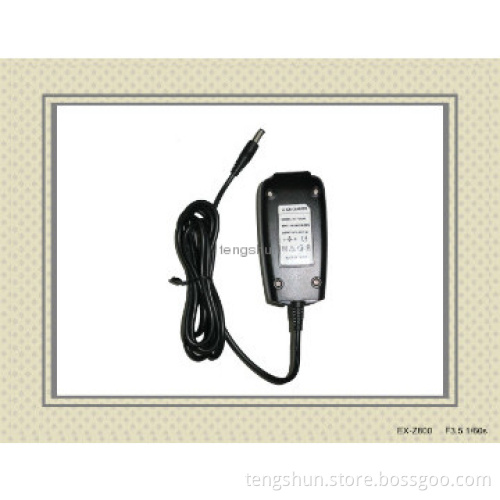

3.6V Ni-MH battery charger

Input : 100-240V AC 50/60HZ(World use)

Input plugs: EU,US,UK,Australia,Japan,South Korea,CN(With customer’s Demand)

Output: 1-5cells 0.5-5A 5-10cells 0.5A-5A 10-15cells 0.5-5A 15-20cells 0.5-5A 20-30cells 0.5-3A

Output Connector: USB, DC, JST, XRL, Alligator Clip,Air plug and so on.

Applied battery: 1-30cells 1-50AH Ni-mh battery pack

Max Output Power:150W

Certificate Approval: UL, CE, FCC, SAA, PSE, ROHS, EK, CB, GS

Charging Mode: CC—CV—Trickle Charging(CPU Controlled)


Charging Function:

1. Charging controlled by CPU,ensure battery charge full,no over-charge happen.
2. Temeprature Protection,protect battery pack infulence by temperature.
3. Over-current Protection,exact Limit of charging current.
4. Pulse Charging:Charging time:450-500ms,Stop charging time:15-30ms,  Charging Proportion: 450/15=30/1

LED Display:

In Charging----- Red Display

Full Charging----Green Display

Battery Reversal---------LED Red Blink

Repair Battery---LED Red Disappear

Over-low voltage of battery---LED: Red,Green Blink

Efficiency:>=85%

Safety Protection: Short-cuirt Protection,Over-current protection,Over-voltage protection,Reversal Protection

Application: LED Torch Flashlight,LED lamps,Electric Bicycle, Mechanical equipment, Portable Electric Device, Phone, MP3/MP4, Boat Device, Rechargeable Bus and so on.
