12V li-ion battery charger CE FCC approved
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Output connector | USB,DCjack, JST, XRL, Alligator Clip,Air plug |
|---|---|
| Input plug | EU,US,UK,Australia,Japan,South Korea,CN, customize |
| Color | Black |
| Product name | 12V li-ion battery charger |
| Application | Standard Battery |
| Type | Universal |
| Output Voltage | 12 |
| Charge Current | 2000mA |
Detail Description
Good Quality 12V Li-ion Battery Charger CE Approved

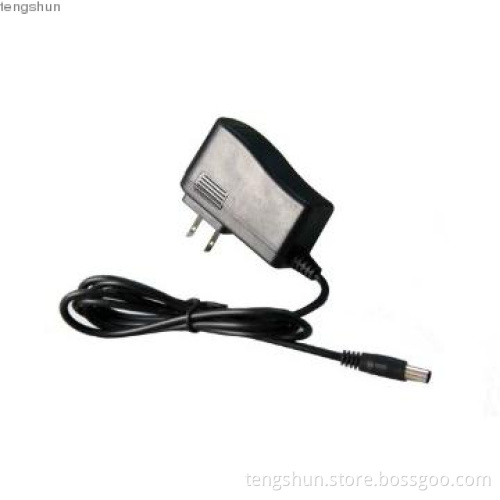

12V Li-ion Battery Charger
1. Input Plug: EU,US,UK,Australia,Japan,South Korea,CN, customized
2. Output Connector: USB,DCjack, JST, XRL, Alligator Clip,Air plug
3. All kinds of shell are available
4. Certification: UL,CE, FCC, SAA, PSE, ROHS,EK,CB,GS
5. Warranty: two year
Specification
Input |
100-240AC 50/60HZ(World use) |
Input plugs |
EU,US,UK,Australia,Japan,SouthKorea,CN(customized) |
Output |
4.2V/8.4V/12.6V/16.8V/21V/25.2V/29.4V/33.6V/42V/46.2V50.4V/54.6V/84V (1-100cells charging voltage) 0.5A-500A(charging current) |
Applied battery |
1-100cells 1-1000Ah |
Max Output Power |
10KW |
Output Connector |
USB,DC, JST, XRL, Alligator Clip,Air plug and so on. |
Certificate Approval |
UL,CE, FCC, SAA, PSE, ROHS,EK,CB,GS |
Charging Mode |
CC—CV(Constant Current—Constant Voltage)-LED switch |
LED Display |
Red----In charging state, Green—Full Charged |
Efficiency |
>=85% |
Safety Protection |
Short-cuirt Protection,Over-current protection, Over-voltage protection,Reversal Protection
|
Application |
LED Torch Flashlight,LED lamps,Electric Bicycle, Mechanical equipment, Portable Electric Device, Phone |
Environmental and reliability
l Oprating temperature, 0~40°C
l Oprating humidity , 10~90%RH
l Storage temperature, -20~+80°C
l Storage humidity , 5~90%RH
l Leakage current , 0.25mA max
l Withstanding voltage, 3000Vac 1 minute 10mA max
l Burn-in 100% full load,40±5°C,4Hrs min
l MTBF meet MIL-HDBK-217F over 50k hours, full load 25°C
l Insulation resistance , 500Vdc 100MΩ min between AC plug and DC plug and case
If you are interested in our product, please feel free to contact me.
Email: marshalee@sztenshun,com
Skype: marshalee11
Additional Information
| Payment Terms | L/C, T/T, Credit Card, Western Union, Paypal |
|---|---|
| Minimum Order | 100pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time: 15 days after your order is confirmed by usSamples are available in three days |
| FOB Port | Shenzhen |
| Loading Info | Shipping by air, sea, and express are all available |
| Packing Info | Inner package: each in a white boxPcs in a outer carton: 100pcs |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
