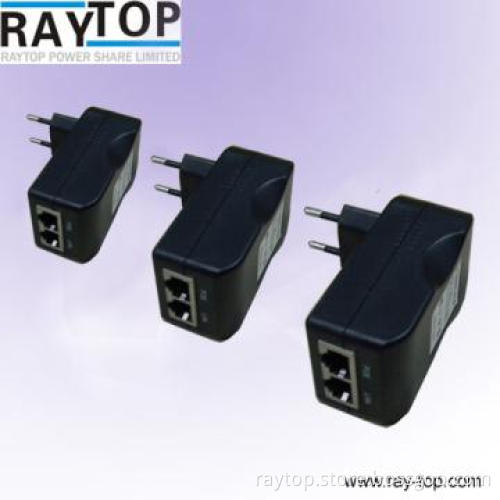

PoE Adapter with 90 to 264V AC Input Voltage and 12 to 20W Output Pow
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| color | black |
|---|---|
| Zone Of Application | South America |
| Connect Type | Plug In |
| Output Type | DC |
Detail Description
- Input no-load power consumption: 0.5W at 115/230V AC (maximum)
- Voltage/frequency/current:
- Input: 90 to 264V AC at 50/60Hz, 0.6A (maximum)
- Output: 12V, 1,000mA
- Input frequency range: 47 to 63Hz
- Input inrush current: 30A (maximum)
- Efficiency: 80% minimum
- Output line regulation: ±5%
- Output load regulation: ±5%
- Output ripple and noise: 1% (maximum)
- Output rising time: 20ms at 115V AC (maximum)
- Output hold-up time: 8ms at 230V AC (minimum)
- Protections: OCP, OVP, SCP and OPP
- Dielectric withstand voltage: 3kV, 5mA at 60 seconds
- Leakage current: 0.25mA at 230V AC
- Operating temperature range: 0 to 40°C
- Storage temperature range: -20 to +85°C
- Compliant with EN60950 standard
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 1000 pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 15 working days from down payment. |
| FOB Port | Shenzhen |
| Loading Info | sea transportation,the shipment will be ready 7 days since dispatch from factory |
| Packing Info | Inner bubble bag, outside master carton, 100 pcs per carton. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
