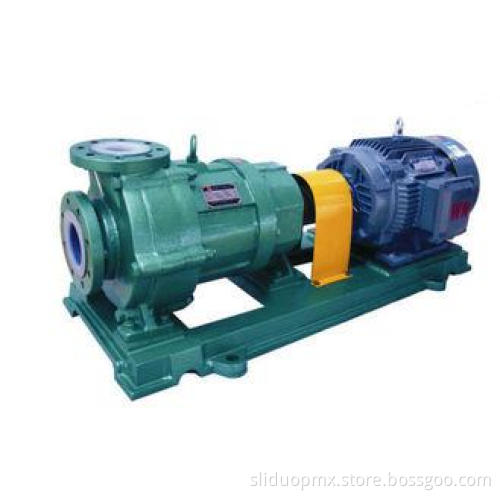

Fluoroplastic Alloy Sulphuric Acid Magnetic Drive Pump For Chemical Process
CQB Horizontal Magnetic Coupling Chemical Transfer Pump Model Significance
CQB 40 -40 -125F
CQB - Centrifugal pump driven by CQB magnetic
40 - The pump’s inlet diameter is 40mm
40 - The inlet diameter is 40mm
125 - The impeller’s nominal diameter is 125mm
F- The material of the liquid carrying part is fluoroplastic alloy
CQB Horizontal Magnetic Coupling Chemical Transfer Pump Introduction
Sinofine CQB magnetic pump is mainly consisted of motor, magnetic coupling and anticorrosive centrifugal pump. When motor drives the external magnet steel of magnetic coupling to rotate, the magnetic force line passes through the clearance and spacer sleeve to act on the internal magnet steel, making the rotor and motor rotating synchronously, thus to transfer the torque with out any mechanical contact. At the end of dynamic input of pump shaft, as liquid has been enclosed in the stationary spacer sleeve without dynamic seal, thus to actualize complete leak tightness.CQB series centrifugal pump are used to move liquid through a piping system for food, chemical, water treatment and wastewater applications, among others. The liquid enters the centrifugal pump, where it goes onto an impeller that flings the liquid out and away, changing the fluid direction, causing acceleration and thereby increasing pressure. Centrifugal pumps keep liquids moving continuously for transporting, removing, loading and elevating fluids.
CQB Horizontal Magnetic Coupling Chemical Transfer Pump Features
Sinofine CQB magnetic pump is widely used in the fields of chemical, pharmaceuticals, petroleum, foodstuff, movie and picture developing and printing to deliver acidic and alkaline liquid,oil, rare precious liquid, poisonous liquid and volatile liquid.Sinofine CQB magnetic pump is made of engineering plastic, also CQ pump can be made in many materials such as: Stainless steel, fluorin plastic, cast iron. CQB magnetic pump has static seal instead of dynamic seal, thus to make the components in contact with flow fully enclosed to get away from the problems of emitting and dripping borne by mechanical seal.The material for the main parts is high-strength engineering plastic, corundum ceramics and stainless steel. Capacity:0.5 to 800m3/h, head:5 to 50m. (special demand can be negotiated).In the driving device the initiative magnet junction box is directly installed onto the motor shaft. The pump chamber is totally sealed, and is propelled to rotate by the magnetic impeller on the magnetic coupling indirect driving pump shaft, its structure tight, safe, and energy-saving.
CQB Horizontal Magnetic Coupling Chemical Transfer Pump Model Significance
| Model |
Flow m3/h |
Lift m |
Efficiency % |
NPSh m |
Inlet XOutlet mm |
Speed r/min |
Motor Power kw |
Weight kg |
| CQB50-32-160FA | 7 | 33 | 30 | 3.5 | 50X32 | 2900 | 4.0 | 140 |
| * 12.5 | 32 | 39 | ||||||
| 15 | 29 | 41 | ||||||
| CQB50.32-200FA | 7 | 52 | 20 | 3.5 | 50x32 | 2900 | 7.5 | 210 |
| * 12.5 | 50 | 31 | ||||||
| 15 | 48 | 35 | ||||||
| CQB65-50-125FL | 15 | 22 | 46 | 3.5 | 65x50 | 2900 | 4 | 120 |
| * 25 | 20 | 61 | ||||||
| 35 | 16 | 67 | ||||||
| CQB65-50-160FL | 15 | 33 | 41 | 4 | 65X50 | 2900 | 7.5 | 210 |
| * 25 | 32 | 51 | ||||||
| 30 | 29 | 55 | ||||||
| CQB65-40-200FA | 15 | 51 | 41 | 4 | 65X40 | 2900 | 11.0 | 250 |
| * 25 | 50 | 48 | ||||||
| 30 | 49 | 54 | ||||||
| CQB80-65-160FA | 35 | 34 | 45 | 4 | 80X65 | 2900 | 11.0 | 285 |
| * 50 | 32 | 60 | ||||||
| 60 | 28 | 52 | ||||||
| CQB80-50-200FA | 35 | 52 | 50 | 4 | 80x50 | 2900 | 18.5 | 320 |
| * 50 | 50 | 60 | ||||||
| 60 | 45 | 60 | ||||||
| CQB100-80-125FL | 65 | 22 | 62 | 4 | 100x80 | 2900 | 18.5 | 300 |
| * 100 | 20 | 65 | ||||||
| 120 | 17 | 68 | ||||||
| CQB100-80-160FL | 70 | 34 | 53 | 5 | 100X80 | 2900 | 18.5 | 350 |
| * 100 | 32 | 58 | ||||||
| 120 | 30 | 60 |
CQB Horizontal Magnetic Coupling Chemical Transfer Pump Structure and Material
CQB Horizontal Magnetic Coupling Chemical Transfer Pump Installation Dimension
CQB Horizontal Magnetic Coupling Chemical Transfer Pump Curve Performance
CQB Horizontal Magnetic Coupling Chemical Transfer Pumps In The Factory
