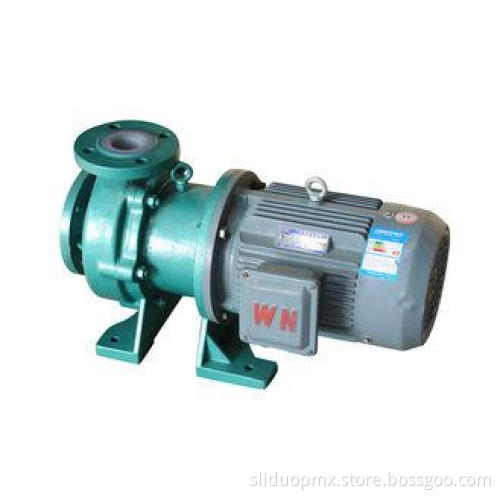

Horizontal CQB Magnetic Coupled Pump With Fluorine Lining ,

IMD Fluorine Plastic Pump Overview

IMD type fluorine plastic magnetic pump is a kind of chemical process pump that is application of modern magnetics principles, using the permanent magnets, to realize non-contact indirect transmission of liquids. When the motor drive exterior rotor (namely the outside magnets) rotates, through the magnetic field to drive the inside rotor (namely inside magnetics) assembly and the impeller rotates synchronously, medium is completely closed in the stationery isolation chamber, so as to achieve leak free pumping purpose, thoroughly solved the problem of the leakage of the shaft sealing transmission pumps, is a fully sealed, no leakage and pollution-free new industry pump.

IMD Fluorine Plastic Pump Working Principle

Magnetic pump is composed of pump, magnetic clutch, motor three parts. Key components magnetic transmission device includes outside and inside magnetic rotor, and not magnetic isolation chamber. When the motor rotates the outside magnetic, the magnetic field will penetrate into the air gap and the non-magnetic material, driving the magnetic rotor rotating with connected impeller to rotate synchronously, realize dynamic non-contact transfer, change the dynamic seals into static seals. Because the pump shaft, inner magnetic rotor is completely sealed by pump body, isolation set, thus completely solved "dripping, leakage" problem, eliminate the problem that petrochemical industry inflammable, explosive, toxic and harmful media leaked through the pump seal, guarantee worker's physical and mental health and safety production.

IMD Fluorine Plastic Pump Applications

Our products are widely used in chemical, making acid, alkali manufacturing, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, scientific research institutions, national defense industry and other industries conveying arbitrary concentration of acid, alkali, oil, the rare and precious liquids, toxic liquid, volatile chemical medium, etc.

IMD Fluorine Plastic Pump Model Significance

CQB 50 -32 -160F

CQB - Centrifugal pump driven by CQB magnetic

50 - The pump’s inlet diameter is 50mm

32 - The inlet diameter is 32mm

160 - The impeller’s nominal diameter is 160mm

F- The material of the liquid carrying part is fluoroplastic alloy

IMD Fluorine Plastic Pump Specification

IMD Fluorine Plastic Pump Installation Dimension

IMD Fluorine Plastic Pump Structure and Maeterial

IMD Fluorine Plastic Pump Performance Curve

IMD Fluorine Plastic Pump In The Factory
