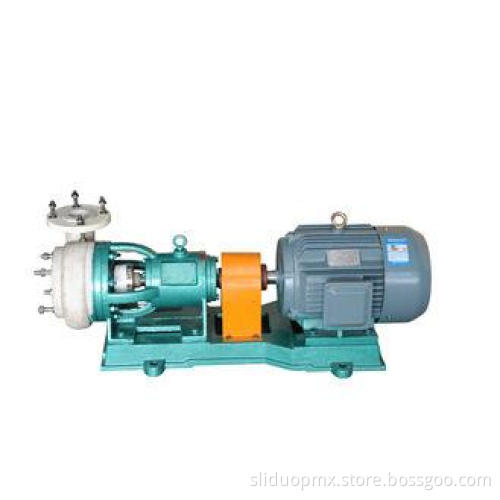

single suction Horizontal Centrifugal Chemical Pump Single

Sinofine FSB centrifugal pump take the liquid-carrying parts of the FSB and FSB-D series centrifugal pump which they are all made of fluoroplastic alloy. Their structures are compact, operations easy, and prices inexpensive. The pump casings, impellers, and mechanical seals, etc. of the models are interchangeable, and the models are warmly accepted among industries such as pesticide, electronics, and papermaking..Sinofine FSB centrifugal pump works by the conversion of the rotational kinetic energy, typically from an electric motor or turbine, to an increased static fluid pressure. The rotation of the pump impeller imparts kinetic energy to the fluid as it is drawn in from the impeller center and is forced outward through the impeller vanes to the periphery. As the fluid exits the impeller, the fluid kinetic energy is then converted to pressure due to the change in area the fluid experiences in the volute section. Typically the volute shape of the pump casing , or the diffuser vanes (which serve to slow the fluid, converting to kinetic energy in to flow work) are responsible for the energy conversion. The energy conversion results in an increased pressure on the downstream side of the pump, causing flow.Our products all adopt the computer design and optimization of processing, the company has strong technical force, rich production experience and perfect detection means, so as to ensure the product quality is stable and reliable.

Working Principle of Sinofine FSB Centrifugal Pump

Sinofine FSB centrifugal pump take the liquid-carrying parts of the FSB and FSB-D series centrifugal pump which they are all made of fluoroplastic alloy. Their structures are compact, operations easy, and prices inexpensive. The pump casings, impellers, and mechanical seals, these modules are interchangeable, and the models are warmly accepted among industries such as pesticide, electronics, and papermaking..Sinofine FSB centrifugal pump works by the conversion of the rotational kinetic energy, typically from an electric motor or turbine, to an increased static fluid pressure. The rotation of the pump impeller imparts kinetic energy to the fluid as it is drawn in from the impeller center and is forced outward through the impeller vanes to the periphery. As the fluid exits the impeller, the fluid kinetic energy is then converted to pressure due to the change in area the fluid experiences in the volute section. Typically the volute shape of the pump casing , or the diffuser vanes (which serve to slow the fluid, converting to kinetic energy in to flow work) are responsible for the energy conversion. The energy conversion results in an increased pressure on the downstream side of the pump, causing flow.

High Quality Design

Our products all adopt the computer design and optimization of processing, the company has strong technical force, rich production experience and perfect detection means, so as to ensure the product quality is stable and reliable.

Location Aplication

Cleanout system.

Every series of food machining and medicine produce

Environment protect system.

Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye and so on.

Electroplate and Dyeing system.

Industrial and chemical sump treatment

Explosion proof motor for oil, alcohol and other explosive liquid

Model Significance

40FSB-20

40 - The pump’s inlet diameter is 40mm

FS - The material of the liquid carrying part is fluoroplastic alloy

B- Single-stage single-suction centrifugal pump

20 - The pump lift is 20mm

Specifications

Structure and Materials

Installation Dimension

Flange Dimension

Parts Diagram

Performance Curve
