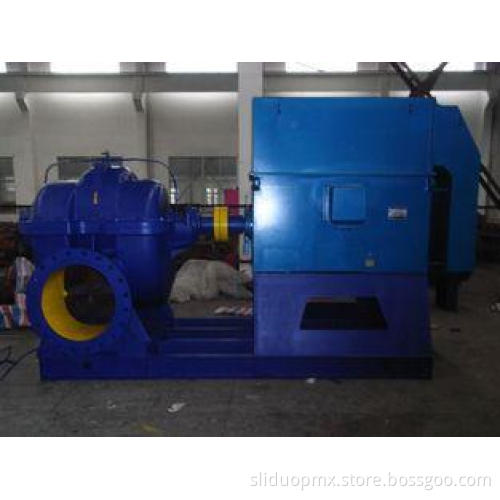

Double Suction Centrifugal Water Pumps 2.5Mpa Axially Split Casing Water Pump

Features of Sinofine Axially Split Casing Centrifugal Water Pump

According to market needs,split-case single-stage double suction centrifugal Water Pumps are developed in the broad absorption of advanced technology. Its remarkable characters are as follows: perfect, excellent general model, novel structure, convenient repair. Split case water pumps currently produced by our company have fall into more than 40 categories, nearly 400 specification products. We had improved pump impeller and impeller diameter to lead to its impact framework and increasing efficiency. In the spectrum performance range, we can provide any water pump that meets users’ need for pump head and flow.Sophisticated products and complete quality control, reach domestic advanced standard. We have IS09001 certificate so we can ensure its quality.This series of water pumps are in accordance with lS02548C, GB321 6C, GB/T5657 standard.

Axially Split Casing Centrifugal Water Pump Applications:

This pump is widely used in city water supply and drainage, urban water supply; water supply and drainage of central heating system; iron and steel metallurgy, petrochemical refineries, paper mills, oil fields, power plant, airport construction, chemical plants, textile mills, sugar refinery, chemical plant, power plant water supply and drainage, the factory, mine fire water supply system, air conditioning system of water supply, farmland irrigation and drainage, Farm Machinery Equipment and all other kinds of water engineering.

Working Conditions For Axially Split Casing Centrifugal Water Pump

Rotation speed: 990, 1480 or 2960rpm

Voltage: 380,6kv or 10kv

Inlet and outlet diameter: 150-600mm (in accordance with GB/T17241.66-1998 flange standard)

Flow: 68-3975m3/h

Head: 6-230m

Temperature: fluid temperature ≤80, ambient temperature≤40

Working pressure: 1.0Mpa (G) (Hsp≤75m) or 1.6MPa (Hsp>75)

Medium permitted: clean water, contact to us for special requirement

Pipe parts for seal: can’t be installed under condition of above 0.03MPa

Specifications For Axially Split Casing Centrifugal Water Pump

No.	Model No.	Capacity (m³/h)	Head (m)	Speed (r/min)	Power (KW)	Effi. (%)	(NPSH)r
1	150S-78	160	78	2950	55	75.5	5.9
2	150S-78A	144	62	2950	45	72.6	3.5
3	150S-50	160	50	2950	37	80.4	3.9
4	150S-50A	144	40	2950	30	75.5	3.9
5	150S-50B	133	36	2950	22	72.5	3.9
6	200S-95	280	95	2950	132	79.2	5.3
7	200S-95A	270	85	2950	110	75	5.3
8	200S-95B	260	75	2950	90	72	5.3
9	200S-63	280	63	2950	75	82.7	5.8
10	200S-63A	270	46	2950	55	75	5.8
11	200S-42	280	42	2950	45	84.2	6
12	200S-42A	270	36	2950	37	80	6
13	250S-65	485	65	1450	132	78.6	3.1
14	250S-65A	420	48	1450	90	77.7	3.1
15	250S-39	485	39	1450	75	83.6	6.7
16	250S-39A	468	30	1450	55	79	3.2
17	250S-24	485	24	1450	55	85.8	6.7
18	250S-24A	414	20	1450	37	83.3	6.7
19	250S-14	485	14	1450	30	85.8	6.7
20	250S-14A	432	11	1450	22	82.7	6.7
21	300S-90	790	90	1450	315	79.6	5.8
22	300S-90A	756	78	1450	280	74.2	5.8
23	300S-90B	720	67	1450	220	73	5.8
24	300S-58	790	58	1450	185	84.2	5.8
25	300S-58A	720	49	1450	160	82.5	5.8
26	300S-58B	684	43	1450	132	80	5.8
27	300S-32	790	32	1450	90	86.8	5.8
