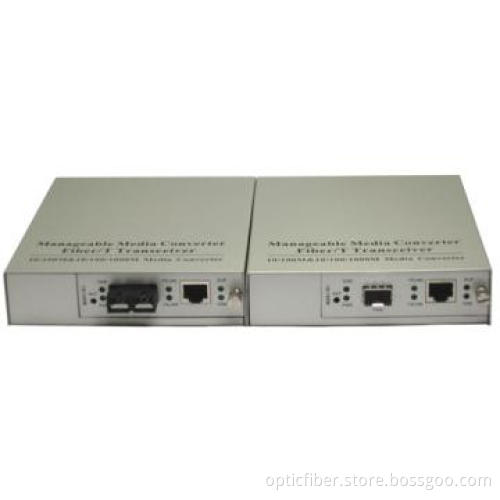

One TO One Manageable Media Converter

• Built-in IP-based Web Interface.
• Supporting remote and local management.
• Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode.
• Store and Forward mechanism.
• Manual IP address setting/DHCP client for IP address assignment.
• SNMP v1 / v2c monitor / private Enterprise MIB.
• Event trap and SNMP trap support.
• Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port.
• Supports Port Status / Ethernet Statistics on both TP and Fiber intertace.
• Supports Maximum frame size to 16K bytes.
• Loop detection / Broadcast / Multicast / Unicast storm control.
• Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN.
• 802.1p Tag Priority / IP address priority / IP DSCP option in.
• Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies.
• TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test.
• 16 TCP / UDP Filter groups.
• Password setting, IP setting and devices description setting through Planet Smart discovery utility.
• Firmware upgrade via remote Web interface.
• LED indicators for easy network diagnosing.
• Reset Button at the front panel for the factory default reset.
• Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.

Technical Parameters:

• Ethernet Interface
  ⑴ Meet standards: IEEE802.3,IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x
  ⑵ Data rate: 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing
  ⑶ Connector: RJ-45
  ⑷ UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m.
• Fiber port
  ⑴ Connector: ST, SC, FC.LC
  ⑵ Operating wavelength: 850nm, 1310nm at Multi-mode; 1310nm, 1550nm at single mode.
  ⑶ Optical fibers: Multi-mode: 50/125，62.5/125，100/140um;
                          Single-mode: 8.3/125,8.7/125,9/125,10/125um
  (4)Transmission distance: Dual fiber: up to 100km
                                     Single fiber: up to 80km
• Basic working environment
  Operating Temp: 0~50℃
  Storage Temp: -10~70℃
  Humidity: 5%~90%（non-condensing）
  Dimension(standalone): 156mm(W)*128mm（D）*32mm（H）
  Power supply: 85VAC~265VAC or -40VDC~-57VDC
  Power consumption: ≤5W
