14/16 Solts Fiber Media Converter Chassis

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Wavelength	850nm--1610NM
Connector	SC
Distance	2-120Km
Work Temperature	10 to 50℃

Detail Description

Product Description

Introduction

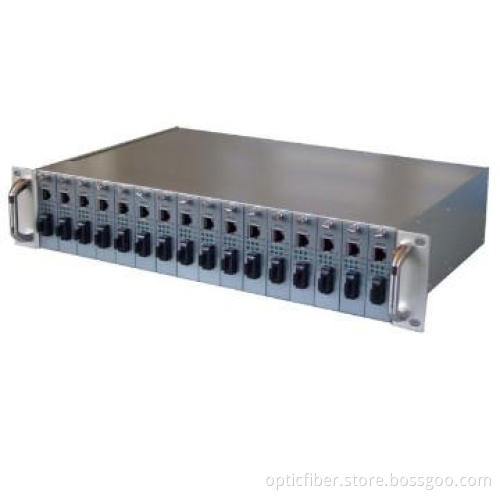

IN-MCR Series is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different types of module type media converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: Main power supply and spare one, and supports its automatic switch-over.

Features
The configuration of active/standby power supply ensures uninterruptible operation of the system
Provide two power supplies (AC 220V and DC -48V), enabling the system can work under many operating environments
Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability
Each card supports hot swapping
2U high: 19-inch standard design
It is possessed of stable performance, large capacity of power supply, and ease for management and maintenance

Technical indexes
Number of slots: 14/16 (Every 10/100M Converter Card occupies one slot, every 10/100/1000M Converter Card occupies two slots)
Standard: IEEE802.3 10/100 Base T Ethernet, IEEE802.3U, 100Base TX/FX Fast Ethernet, IEEE802.3 x Flow control, IEEE802.3. 1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Structure: 2U rack
Power input: AC Voltage: AC 85~265V; Frequency: 50/60 Hz
DC voltage: DC-36~72V
Power output: DC5V 12A
Power protection: Protection from over voltage, over current and short circuit
Vein: 50mv
Noise: 50mv
Power configuration: Single power supply or Dual power supply for warm backup mode
LED indication: POWER (power supply)
Max. Power consumption: 95W
Certifications: FCC, CE
Operating temperature: 10~55
Operating humidity: 5%~90%
Maintaining temperature: 40~70
Maintaining humidity: 5% ~ 90% non-condensing
Dimensions of rack: 90mmHx 485mmWx 245mmD
Dimensions of card type: 14 Port: 89mm (H)*22mm (W)*81mm (D)
16 Ports: 75mm (H) x100mm (L)

Ordering information
Part Number Product Description
ZX-14 19 2U, 14 slots fiber media converter rack with dual powers, AC 220V or DC48V
ZX-16 19 2U, 16 slots fiber media converter rack with dual powers, AC 220V or DC48V
19 2U, 16 slots fiber media converter rack with dual powers, AC 220V or DC48V, including one set of 10/100M SNMP management media converter cards
ZX-16111 19 2U, 16 slots fiber media converter rack with dual powers, AC 220V or DC48V, including one set of 10/100M & 10/100/1000M SNMP management media converter cards

OEM and ODM
OEM/ODM order is available
We can supply products according to your requirements, and design products label for your company.
We have helped many clients to complete important project, and established long-term business relations, we hope to cooperate with you as well.

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	100 pairs
Lead Time / Delivery Time	7 Day(s)
Sample Available	NO
Delivery Details	Full payment before delivery
FOB Port	Shenzhen
Loading Info	FOB Shenzhen
Packing Info	All export packing
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
