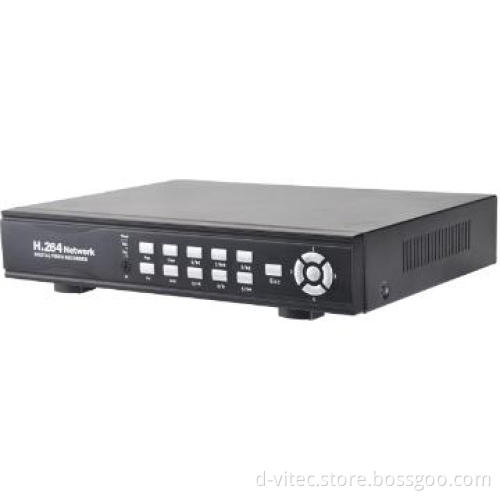

4CH 3in1 DVR Standalone Video Surveillance Recorder
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Color | Black |
|---|
Detail Description
| System | Operating system | Embedded LINUX operating system |
| Interface | GUI | 16bit real color GUI interface support mouse operation |
| Display screen | 1/4 screen (take analog channel as an example, other is base on the selected channel mode) | |
| Video | Video standard | PAL（625 lines，50fps）；NTSC（525 lines，60fps） |
| Image encode | H.264(High Profile) | |
| Monitor quality | Monitor：D1； VGA/HDMI：support 1920*1080, 1280*720,1280*1024, 1024*768 | |
| Playback quality | 1080P/720P/D1/HD1/CIF | |
| Encode capability | 4ch D1/960H real-time | |
| Decode capability | 4ch D1/960H real-time | |
| Multi-mode video input |
Local analog input：4*D1 OR 4 *960H Local analog + network digital input：2 *D1+(1*1080P+1*720P) Network digital input：8*960H /4*720P /2*1080P/1*720P+7*D1/1*1080P+1*720P+2*D1 |
|
| Motion detection | Each channel can set 192（16*12）detection area (for local analog channel only) | |
| Audio | compression | G711A |
| Record and playback | Record mode | manual>alarm>motion detection>timing |
| Local playback | local 4 * 960 h mode, Maximum support 4 road playback (4 * 960 h @ 25 FPS) | |
| Video search | time、date、event、channel search | |
|
Storage and back up |
Space occupation | Video：CIF 4~5G/day/channel，D1 16~20G/day/channel； |
| Video storage | Local HDD 、Network | |
| Back up mode | Network backup、USB portable HDD、USB imprint、SATA imprint | |
| Interface | Video input | 4ch CVBS/BNC(1.0Vp-p,75Ω) |
| Video output | 1ch CVBS/BNC(1.0Vp-p,75Ω)，1ch VGA，1ch HDMI | |
| Audio input | 4ch RCA(200-2800mV,30KΩ) | |
| Audio input | 1ch RCA(200-3000mV,5KΩ) | |
| Network port | RJ45 10M/100M self-adaptive Ethernet port | |
| PTZ control | 1 RS485、1 RS232；support multi kinds of PTZ protocol | |
| USB port | 2*USB2.0 | |
| HDD port | 1 SATA ports（ max to 2048G） | |
| Wireless port | 3G、WIFI(extension via USB port) | |
| Other | Power | 12V/2A |
| Consumption | <15W（not including HDD) | |
| Temperature | 0℃-＋55℃ | |
| Humidity | 10%－90% |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 5 |
| Lead Time / Delivery Time | 14 Day(s) |
| Sample Available | YES |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
