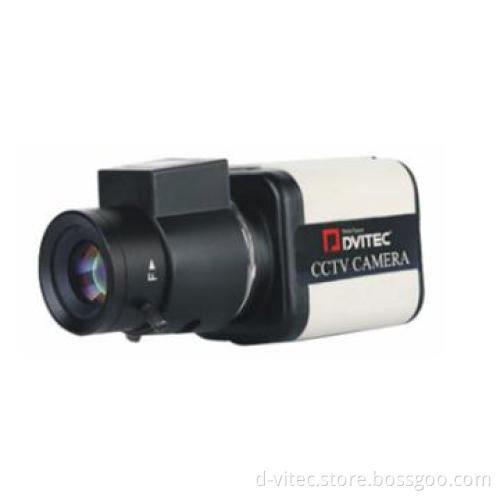

600TVL high solution mini box camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| sensor | 1/3\'\' sony CCD |
|---|---|
| resolution | 600TVL |
| Illumination | 0.01Lux |
| Function | 2D-DNR, D-WDR |
| Size | 46*48*56.8mm |
| Special Features | Other |
| Technology | Other |
| Type | Other |
| Image Sensor | CCD |
| Style | Box Camera |
Detail Description
- Product description
- DV-445series cameras using the latest Sony Super Had CCD II with advanced DSP technology, which has 2D function and D-WDR functions can offer high quality clear image in the low light environment, vandal proof housing design, considered as the best choice install in bank, army, prison and so on.
- Characteristics description：
- 1/3\"SONY EXview HAD CCD II
- 600TVL high resolution
- Low illumination：0.01 Lux（F1.2,50IRE）
- OSD Menu control
- D-WDR
- 2D DNR
- Specifications
| MODEL | DV-445VH |
| Image Sensor | 1/3\"SONY EXview HAD CCD II |
| Effective Pixels | 752(H) x 582(V) |
| Scanning System | 2:1 interlace |
| Synchronization System | Internal Sync Only |
| Resolution (Horizontal) | 600TV Lines |
| Video Output | CVBS : 1.0Vp-p,75Ωcomposite |
| S/N Ratio | 52dB(AGC off, Weight on) |
| Min. Illumination | COLOR:0.01Lux(F1.2,50IRE) |
| IRIS Adjustment | DC/Video |
| ESC | Auto/Manual(1/50(60)~1/120,000sec) |
| OSD Language | English/Chinese/ |
| BLC | BLC / HLC / D-WDR / Off |
| Day/Night selection | Color / Auto / B/W / EXT (Built In DC Motor Driver) |
| Gain Control | Low / High/Off |
| White Balance | ATW / MANUAL / AWC (1,700°K~11,000°K) |
| Motion Detection | On / Off (Programmable 4 zones) |
| Privacy Masking | On / Off (Programmable 4 zones) |
| 2 DNR | On / Off |
| Display | LCD / CRT/ USED |
| Definition | On / Off (Level Adjustable) |
| Input Voltage | DC6V – DC18V |
| Power Consumption | MAX 1.2W |
| Operating Temp/Hum | -10℃~+50℃/30%RH~80%RH |
| Storage Temp/Hum | -20℃~+60℃/20%RH~90%RH |
| Dimension | 46*48*56.8mm |
| Weight | 0.7kg |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 100pcs |
| Lead Time / Delivery Time | 14 Day(s) |
| Sample Available | YES |
| Delivery Details | The warranty is one yearGoods will be sent within 15 days after confirming the payment |
| FOB Port | Shenzhen |
| Loading Info | All above is EXW Shenzhen basis. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
