1080P MINI VANADALPROOF VARIFOCAL IR DOME CAMERA
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| AGC | AUTO |
|---|---|
| SCANNING SYSTEM | PROGRESSIVE |
| DAY/NIGHT | YES |
| Type | Video Camera |
| Style | Dome Camera |
| Special Features | Vandal-proof, Waterproof |
| Image Sensor | CMOS |
| Technology | Infrared |
Detail Description

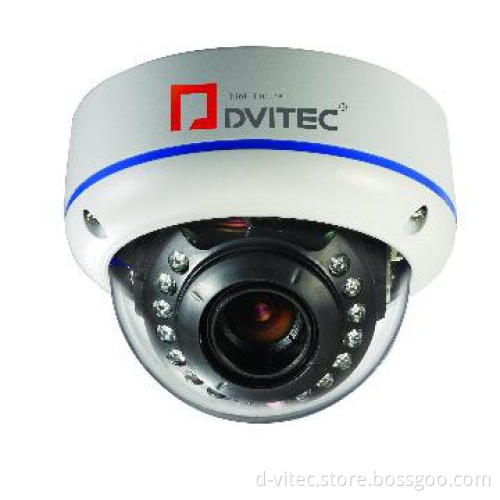

1080P MINI VARIFOCAL IR DOME CAMERA
Model: DV-HD8104VR
1、Description
DV-HD8104VR is using broadcast standard HD-SDI technology, the cameras are as easy using as analog cameras, but can get 1080P HD picture. With excellent low light performance, the screen effect is very superior. 15pcs IR LED, 20M IR distance, with built in ICR, the camera can get true day and night image. DV- HD8104VR cameras are suitable for finance, highways, safe cities, prisons and other application.
2、Related Items
1080P: DV-HD8104VR
720P: DV-HD8103VR
3、Features
Model: DV-HD8104VR
1、Description
DV-HD8104VR is using broadcast standard HD-SDI technology, the cameras are as easy using as analog cameras, but can get 1080P HD picture. With excellent low light performance, the screen effect is very superior. 15pcs IR LED, 20M IR distance, with built in ICR, the camera can get true day and night image. DV- HD8104VR cameras are suitable for finance, highways, safe cities, prisons and other application.
2、Related Items
1080P: DV-HD8104VR
720P: DV-HD8103VR
3、Features
- 1080P HD Real-time outputs
- HD-SDI outputs Support SMPTE292M、SMPTE424M standard
- Low illumination, 3DNR
- 16pcs LEDs, 20 M IR distance
- Low power consumer 1.2W（100mA）
- WDR, D-WDR, BLC
- Digital Zoom
- Mega Auto Iris lens 2.8-12mm
| Model number | DV-HD8104VR |
| Image sensor | 1/3” Panasonic CMOS(MN34041PL) |
| Total Pixel | 2010(H)x1108(V) |
| Active Pixel | 1920(H)x1080(V) |
| Scanning system | Progressive |
| Resolution | 1100TVL |
| Min. Illumination | Color:0.2 lux, B/W:0.05,F1.2/0Lux(IR on) |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| DigitalSlow Shutter | Off/Low/Middle/High |
| S/N Ratio | 50dB（AGC OFF） |
| WDR/BLC | WDR、BLC（D-WDR） |
| DNR (Digital Noise Reduction) | 3D Masks |
| Digital Zoom | x96 |
| Privacy Mask | 32Masks |
| OSD | support |
| Video Output | HD-SDI: SmptE 292,424,425 /CVBS:1.0Vpp,75ohm |
| Lens | 2.8-12mm Board Lens |
| Power(Max.) supply | DC12V, Less than 4Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| size | Φ105x81mm |
| weight | 470g |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 14 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Loading Info | RETAIL SELLING CAN BE ACCEPTABLE |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
