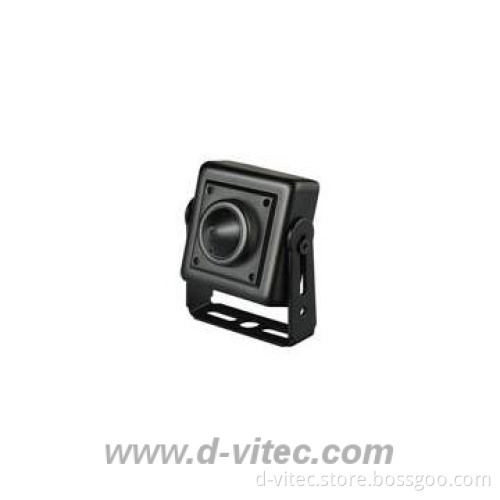

Super miniature 700TVLine camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Weight | 130g |
|---|---|
| Color | Black |
| Type | Video Camera |
| Style | Mini Camera |
| Special Features | Other |
| Technology | Pinhole |
| Image Sensor | CCD |
Detail Description
Introduction
DV-325NH Series of miniature cameras, using SONY SuperHAD CCD II and South Korea new DSP technology, achieving high quality image output. Product integration structure design, small size is 25 * 25 mm, the zinc alloy shell, quality stable and reliable, with high stability and reliability
DV-325NH Series miniature cameras have day and night switch function, the image adjustment function such as automatic gain, these features make the DV – 325NH series camera, very suitable for ATM machine out of the money, the money, background monitoring applications, etc.
Features
l 1/3\"SONY CCD
l digital wide dynamic
l 2D digital noise reduction
l DC12V power supply
Specitications
DV-325NH Series of miniature cameras, using SONY SuperHAD CCD II and South Korea new DSP technology, achieving high quality image output. Product integration structure design, small size is 25 * 25 mm, the zinc alloy shell, quality stable and reliable, with high stability and reliability
DV-325NH Series miniature cameras have day and night switch function, the image adjustment function such as automatic gain, these features make the DV – 325NH series camera, very suitable for ATM machine out of the money, the money, background monitoring applications, etc.
Features
l 1/3\"SONY CCD
- level definition:：650 line
- minimum illumination： 0.001 Lux，F1.2
l digital wide dynamic
l 2D digital noise reduction
l DC12V power supply
Specitications
| DV-325GHP | |
| mage Sensor | 1/3\" SONY CCD |
| Total Pixel | 976（H）×582（V） |
| Scanning System | Progressive-scan H：15.625KHZ V：50HZ |
| Synchronization | Internal Synchro nization |
| Resolution | 650TVL |
| OSD Menu | OK |
| Day&Night | OK |
| Gammar | 0.45 |
| SNR | >50dB（AGC OFF） |
| Min.Illumination | 0.001Lux,F1.2 |
| Lens focal length | 3.7mm |
| Gain Control | AOTO |
| White Blance | Auto 2500ºK-10000ºK |
| BLC | On/Off |
| Video Output | 1.0Vpp，75ΩComposite video |
| Power | DC12V |
| Consumed Power | 1W（Max） |
| Weight | 28g |
| Operating temperature | ﹣10℃～＋50℃ |
| Operating Humidity | <90％RH |
| Size | 25x25x19mm |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Lead time for sample: 3 days, 30-100pcs: 5 working days, 100-500pcs: 2 weeks, 500pcs above: 3 weeks |
| FOB Port | Shenzhen |
| Loading Info | price based on ex-work |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
