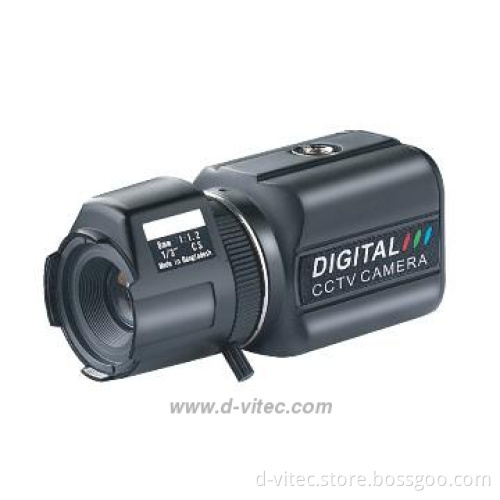

700TVL Day/Night Camera, Privacy Masking
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| sensor | 1/3\'\' Sony CCD |
|---|---|
| horizontal resolution | 700TVL |
| illumination | 0.01Lux |
| function | 3D-DNR,D-WDR |
| Size | 40*43*52mm |
| Type | Video Camera |
| Special Features | Other |
| Technology | Other |
| Image Sensor | CCD |
| Style | Box Camera |
Detail Description
| MODEL | DV-440EH |
| Sensor | 1/3″SONY Super HAD II CCD |
| DSP | CXD4127GG (SONY EFFIO) |
| Imaging Device | 1/3\"SONY ICX673AK/ICX672AK |
| Total Pixels | 1020(H) x 596(V) |
| Effective Pixels | 976(H) x 582(V) |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal |
| Horizontal Resolution | 650TV Lines |
| Video Output | CVBS : 1.0Vp-p,75Ωcomposite |
| S/N Signal | 52dB(AGC off, Weight on) |
| Min. Illumination | COLOR:0.01Lux(F1.2,50IRE),B/W:0.001Lux(F1.2,50IRE) |
| IRIS Adjustment | DC/Video |
| ESC | Auto/Manual(1/50(60)~1/120,000sec) |
| OSD Language | English/Chinese/ |
| BLC | BLC / HLC / D-WDR / Off |
| Day/Night selection | Color / Auto / B/W / EXT (Built In DC Motor Driver) |
| Gain Control | Low / Hight /Off |
| White Balance | ATW / OUTDOOR / INDOOR / MANUAL / AWC (1,700°K~11,000°K) |
| Motion Detection | On / Off (Programmable 8 zones) |
| Privacy Masking | On / Off (Programmable 12 zones) |
| 2 DNR | On / Off |
| Display | LCD / CRT/ USED |
| Lens | 3.7-10mm |
| Definition | On / Off (Level Adjustable) |
| Input Voltage | DC6V - DC18V |
| Power Consumption | MAX 1.5W |
| Operating Temp/Hum | -10℃~+50℃/30%RH~80%RH |
| Storage Temp/Hum | -20℃~+60℃/20%RH~90%RH |
| Dimension | 40x40x54MM |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10pcs |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | Lead time for sample: 3 days, 30-100pcs: 5 working days, 100-500pcs: 2 weeks, 500pcs above: 3 weeks |
| FOB Port | Shenzhen |
| Loading Info | price based on ex-work |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
