600TVL waterproof IR Camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| image sensor | 1/3\'\' CCD |
|---|---|
| resolution | 600TVL |
| Illumination | 0.01Lux |
| lens | 2.8-12mm |
| IR distance | 50m |
| Special Features | Waterproof |
| Type | Other |
| Style | Other |
| Image Sensor | CCD |
| Technology | Infrared |
Detail Description
Product Description

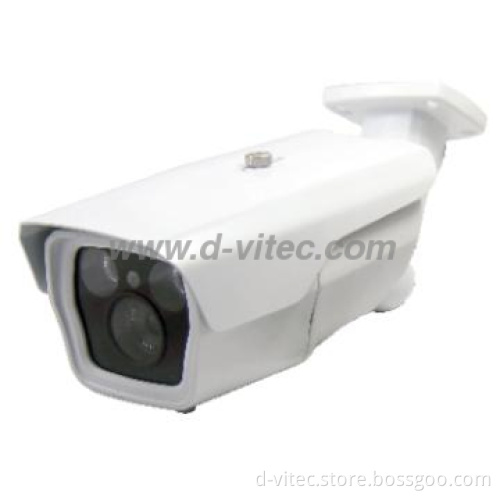

DV-910 series IR camera adopts 1/3\' SONY CCD and 600 TV line integrated design. simple and economical. it is with OSD menu and digital wide dynamic and 2D DNR ., it can achieve the best performance during both day and night.
DV-910 series IR camera is equipped Array leds. it can achieve an infrared video surveillance range of about 80 meters. Lens is option for 3.6 or 6mm.It is mainly used in 24-hour outdoor surveillance sites such as housing estates, schools, factories and enterprises, etc.
Product feature
DV-910 series IR camera adopts 1/3\' SONY CCD and 600 TV line integrated design. simple and economical. it is with OSD menu and digital wide dynamic and 2D DNR ., it can achieve the best performance during both day and night.
DV-910 series IR camera is equipped Array leds. it can achieve an infrared video surveillance range of about 80 meters. Lens is option for 3.6 or 6mm.It is mainly used in 24-hour outdoor surveillance sites such as housing estates, schools, factories and enterprises, etc.
Product feature
- 1/3＂SONY CCD
- 600TVL high resolution
- D-WDR
- 2D/ DNR
- 3.6/6/12mm board lens，2.8-12mm auto iris lens
- Double-glass module can effectively solve the infrared light reflection resulting from fog, halo etc.
- Unique heat dissipation design creates a temperature difference of 10 °C between the inside and the outside, greatly extending the life of the infrared lamps
- Specifications
| MODEL | DV-910VH |
| Image Sensor | 1/3\"SONY CCD |
| Effective Pixels | 752(H) x 582(V) |
| Scanning System | 2:1 interlace |
| Synchronization System | Internal Sync Only |
| Resolution (Horizontal) | 650TV Lines |
| Video Output | CVBS : 1.0Vp-p,75Ωcomposite |
| S/N Ratio | 52dB(AGC off, Weight on) |
| Min. Illumination | COLOR:0.01Lux(F1.2,50IRE),B/W:0Lux |
| IRIS Adjustment | DC/Video |
| ESC | Auto/Manual(1/50(60)~1/120,000sec) |
| OSD Language | English/Chinese/ |
| BLC | BLC / HLC / D-WDR / Off |
| Day/Night selection | Color / Auto / B/W / EXT (Built In DC Motor Driver) |
| Gain Control | Low / High /Off |
| White Balance | ATW / MANUAL / AWC (1,700°K~11,000°K) |
| Motion Detection | On / Off (Programmable 4 zones) |
| Privacy Masking | On / Off (Programmable 4 zones) |
| 2D DNR | On / Off |
| Display | LCD / CRT/ USED |
| Definition | On / Off (Level Adjustable) |
| Input Voltage | DC9V – DC13V |
| Power Consumption | MAX 6W |
| Operating Temp/Hum | -10℃~+50℃/30%RH~80%RH |
| Storage Temp/Hum | -20℃~+60℃/20%RH~90%RH |
| Dimension | F148*107mm |
| Weight | 2kg |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10 pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Lead time for sample: 3 days, 30-100pcs: 5 working days, 100-500pcs: 2 weeks, 500pcs above: 3 weeks |
| FOB Port | Shenzhen |
| Loading Info | price based on ex-work |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
