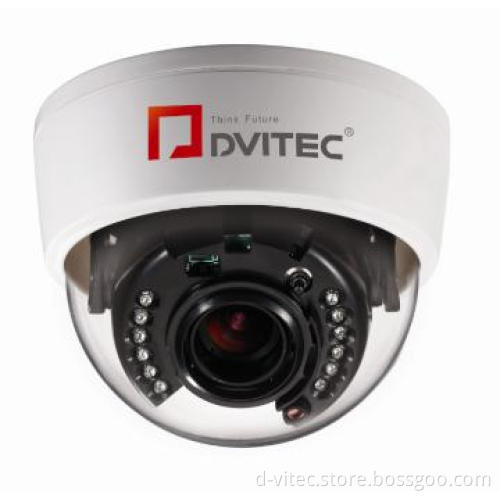

High Resolution IR LED Dome Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

MODEL	DV-612GHVR
Image Sensor	1/3\"SONY EXview HAD CCD II
Total Pixels	1020(H) x 596(V)
Effective Pixels	976(H) x 582(V)
Scanning System	2:1 interlace
Synchronization System	Internal Sync Only
Resolution (Horizontal)	700TV Lines
Video Output	CVBS : 1.0Vp-p,75Ωcomposite
S/N Ratio	52dB(AGC off, Weight on)
Min. Illumination	COLOR:0.01Lux(F1.2,50IRE)
IRIS Adjustment	DC/Video
ESC	Auto/Manual(1/50(60)~1/120,000sec)
OSD Language	English/Chinese/
BLC	BLC / HLC / D-WDR / Off
Day/Night selection	Color / Auto / B/W / EXT (Built In DC Motor Driver)
Gain Control	Low / High /Off
White Balance	ATW / OUTDOOR / INDOOR / MANUAL / AWC (1,700°K~11,000°K)
Motion Detection	On / Off (Programmable 4 zones)
Privacy Masking	On / Off (Programmable 4 zones)
2 DNR	On / Off
Display	LCD / CRT/ USED
Definition	On / Off (Level Adjustable)
Input Voltage	DC6V - DC18V
Power Consumption	MAX 2.4W
Operating Temp/Hum	-10℃~+50℃/30%RH~80%RH
Storage Temp/Hum	-20℃~+60℃/20%RH~90%RH
Dimension	F00*00mm
Weight	0.7kg

Payment Terms	T/T
Minimum Order	10pcs
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Lead time for sample: 3 days, 30-100pcs: 5 working days, 100-500pcs: 2 weeks, 500pcs above: 3 weeks
FOB Port	Shenzhen
Loading Info	price based on ex-work
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
