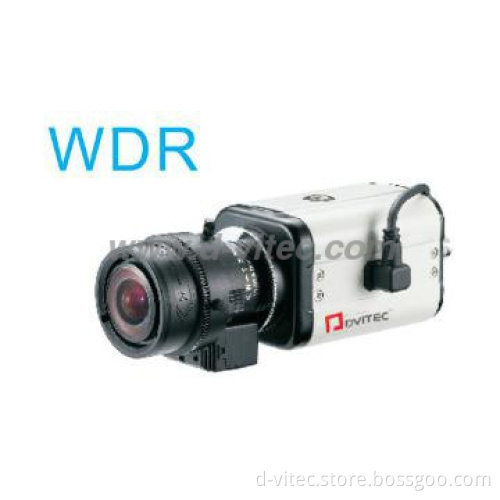

WDR 700TVL mini box cctv camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| sensor | 1/3\'\' sony CCD |
|---|---|
| resolution | 700TVL |
| Illumination | 0.01Lux |
| Function | 3D-DNR, WDR |
| Size | 46*48*76mm |
| Special Features | Other |
| Technology | Other |
| Type | Other |
| Image Sensor | CCD |
| Style | Box Camera |
Detail Description
- Product description
- DV-446series cameras using the latest Sony Super Had CCD II with advanced DSP technology, which has 3D function and WDR functions can offer high quality clear image in the low light environment, vandal proof housing design, considered as the best choice install in bank, army, prison and so on.
- Characteristics description：
- 1/3\"SONY EXview HAD CCD II
- 700TVL high resolution
- Low illumination：0.01 Lux（F1.2,50IRE）
- OSD Menu control
- WDR
- 3D DNR
- Specifications
| MODEL | DV-446PH |
| Image Sensor | 1/3\"SONY EXview HAD CCD II |
| Effective Pixels | 976(H) x 582(V) |
| Scanning System | 2:1 interlace |
| Synchronization System | Internal Sync Only |
| Resolution (Horizontal) | 700TV Lines |
| Video Output | CVBS : 1.0Vp-p,75Ωcomposite |
| S/N Ratio | 52dB(AGC off, Weight on) |
| Min. illumination | COLOR:0.01Lux(F1.2,50IRE) |
| IRIS Adjustment | DC/Video |
| ESC | Auto/Manual(1/50(60)~1/120,000sec) |
| OSD Language | English/Chinese/ |
| BLC | BLC / HLC / WDR / Off |
| Day/Night selection | Color / Auto / B/W / EXT (Built In DC Motor Driver) |
| Gain Control | Low / High /Off |
| White Balance | ATW / MANUAL / AWC (1,700°K~11,000°K) |
| Motion Detection | On / Off (Programmable 4 zones) |
| Privacy Masking | On / Off (Programmable 4 zones) |
| 3 DNR | On / Off |
| Display | LCD / CRT/ USED |
| Definition | On / Off (Level Adjustable) |
| Input Voltage | DC6V - DC18V |
| Power Consumption | MAX 1.2W |
| Operating Temp/Hum | -10℃~+50℃/30%RH~80%RH |
| Storage Temp/Hum | -20℃~+60℃/20%RH~90%RH |
| Dimension | 46x48x76mm |
| Weight | 0.7kg |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | The warranty is one yearGoods will be sent within 15 days after confirming the payment |
| FOB Port | Shenzhen |
| Loading Info | All above is EXW Shenzhen basis. |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
