720P HD-SDI MINI BOX CAMERA
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| LOW ILLUMINATION | DAY&NIGHT |
|---|---|
| LOW POWER CONSUMER 1.2w | WDR |
| DIGITAL WDR | BLC |
| DIGITAL ZOON | SECURITY |
| Type | Video Camera |
| Special Features | Other |
| Technology | Other |
| Image Sensor | CMOS |
| Style | Box Camera |
Detail Description

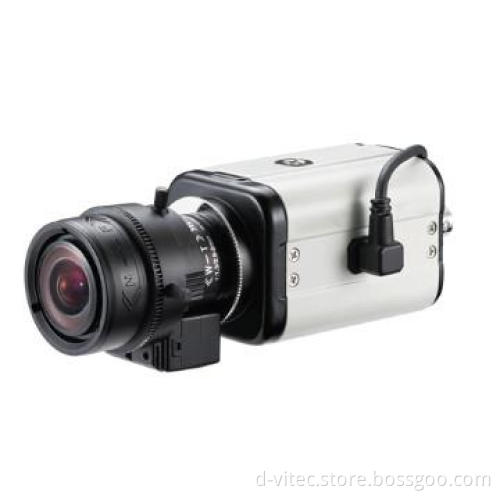

720P HD-SDI Mini Box camera
Model: DV-HD4463
1、Description
DV-HD4463 use of broadcast standard HD-SDI technology, real time, the cameras are as easy use as analog cameras, but can get 720P HD picture. With excellent low light performance, day and night, HLC, mirror and other unique features, the screen effect is very superior, DV-HD4463 HD SDI box camera is widely used in high quality requirements fields like finance, government, telecommunications, schools, shopping malls, public security and others
2、Related Items
1080P: DV-HD4464
720P: DV-HD4463
3、Features
Model: DV-HD4463
1、Description
DV-HD4463 use of broadcast standard HD-SDI technology, real time, the cameras are as easy use as analog cameras, but can get 720P HD picture. With excellent low light performance, day and night, HLC, mirror and other unique features, the screen effect is very superior, DV-HD4463 HD SDI box camera is widely used in high quality requirements fields like finance, government, telecommunications, schools, shopping malls, public security and others
2、Related Items
1080P: DV-HD4464
720P: DV-HD4463
3、Features
- 720P HD Real-time outputs
- HD-SDI outputs Support SMPTE292M、SMPTE424M standard
- Low illumination, 2DNR
- Day& night, HLC, Mirror function
- Low power comsumer1.2W（100mA）
- BLC
- Digital Zoom
| Model number | DV-HD4463 |
| Image sensor | 1/3\" Porgressive scan sensor |
| Total Pixel | 1312（H）×740（V） |
| Scanning system | Progressive |
| Resolution | 900 TVlines |
| OSD | support |
| Digital Noise Reduction | 2D |
| Say/Night | support |
| Gamma | 0.45 |
| S/N Ratio | >40dB（AGC OFF） |
| Min. Illumination | Color : 1.0 lux, BW: 0.5 lux,F1.2 |
| Lens mount | CS/C |
| AGC | Auto |
| White Balance | Auto 2500ºK-10000ºK |
| BLC | On/Off |
| Video output | 1.0Vpp，75ohm |
| Power supply | DC12V, Less than 1.2Watts |
| weight | 300g |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| Dimension | 46(H)x48(W)x 87(L)mm |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-10days after receiving deposit. |
| FOB Port | Shenzhen |
| Loading Info | BOTH OF BUCK AND DETAIL ARE ACCEPTABLE |
| Packing Info | PACKED BY CARTON.SAFE |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
