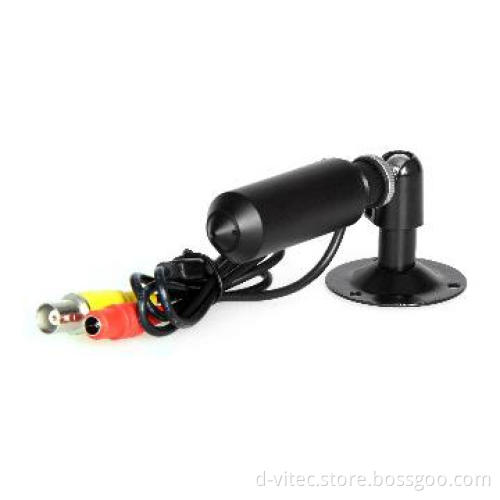

MINIATURE 700TVLINE BULLET CAMERA
Model: DV-221NH series
1、Description
DV-221NH bullet camera series, using SONY\'s Super Ex-view CCD II and Korean latest DSP, makes the picture clearer. Full-zinc alloy shell, solid and reliable quality, high stability and reliability; this camera is suitable for education, government, financial systems, sports and other hiding places.
2、Related items
Weatherproof case: DV-221NH
Pinhole case: DV-221NHP
3、Features
4、Specification
Model: DV-221NH series
1、Description
DV-221NH bullet camera series, using SONY\'s Super Ex-view CCD II and Korean latest DSP, makes the picture clearer. Full-zinc alloy shell, solid and reliable quality, high stability and reliability; this camera is suitable for education, government, financial systems, sports and other hiding places.
2、Related items
Weatherproof case: DV-221NH
Pinhole case: DV-221NHP
3、Features
- 1/3’SONY SuperExview CCD II
- Resolution：700 TV lines
- NVP2090 DSP
- Minimum Illumination: 0.01 Lux，F1.2
- Digital WDR; OSD Menu
- 2D DNR
- DC12V/1A Power Supply
- Smart size ∮21x85mm
4、Specification
| model | DV-221NH / DV-221NHP |
| mage Sensor | 1/3\" SONY SuperExview CCD II |
| Effective pixels | NTSC: 976（H）×494（V）/PAL:976(H) X582(V) |
| Scanning System | interline-scan H：15.625KHZ V：50HZ |
| Synchronization | Internal Synchro nization |
| Resolution | 700TVL |
| OSD menu | YES |
| BLC | D_WDR/HLC/BLC/OFF |
| DNR | 2DNR |
| Day/Night | YES |
| Gamma | 0.45 |
| S/N Ratio | >50dB（AGC OFF） |
| Min. Illumination | 0. 01 Lux，F1.2 |
| Lens | 3.6mm (board lens) ; 3.7mm/2.5mm (pinhole ) |
| Gain Control | Auto |
| White Balance | Auto 2500ºK-10000ºK |
| Video Output | CVBS : 1.0Vp-p,75Ωcomposite |
| Input Voltage | DC12V |
| Power Consumption | 1W（Max） |
| Weight | 250g |
| Operating Temp | ﹣10℃～＋50℃ |
| Storage Hum | 30%RH~80%RH |
| Dimension | ∮21x87mm |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 14 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
