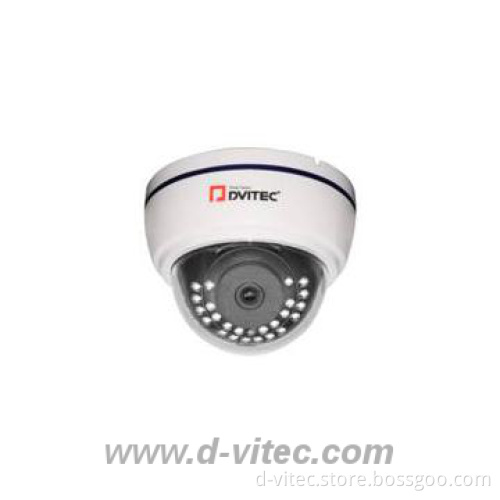

1080P HD-SDI Mini IR Dome camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Color | White |
|---|---|
| OSD | support |
| Type | Video Camera |
| Style | Dome Camera |
| Special Features | Other |
| Image Sensor | CMOS |
| Technology | Infrared, Zoom |
Detail Description
1080P HD-SDI Mini IR Dome camera
Model: DV-HD7114
1、Description
DV-HD7114 is using broadcast standard HD-SDI technology, real time, the cameras are as easy using as analog cameras, but can get 1080P HD picture. With excellent low light performance, day and night, HLC, mirror and other unique features, the screen effect is very superior. 24pcs IR LED, 30M IR distance, with built in ICR, the camera can get true day and night. This camera can be used for private monitoring, supermarkets, schools and other surveillance applications.
2、Related Items
1080P: DV-HD7114
720P: DV-HD7113
3、Features
Model: DV-HD7114
1、Description
DV-HD7114 is using broadcast standard HD-SDI technology, real time, the cameras are as easy using as analog cameras, but can get 1080P HD picture. With excellent low light performance, day and night, HLC, mirror and other unique features, the screen effect is very superior. 24pcs IR LED, 30M IR distance, with built in ICR, the camera can get true day and night. This camera can be used for private monitoring, supermarkets, schools and other surveillance applications.
2、Related Items
1080P: DV-HD7114
720P: DV-HD7113
3、Features
- 1080P HD Real-time outputs
- HD-SDI outputs Support SMPTE292M、SMPTE424M standard
- Low illumination, 3DNR
- 24pcs LEDs, 30 M IR distance
- Low power comsumer1.2W（100mA）
- WDR, D-WDR, BLC
- Digital Zoom
| Model number | DV-HD7114 |
| Image sensor | 1/3” Panasonic CMOS(MN34041PL) |
| Total Pixel | 2010(H)x1108(V) |
| Active Pixel | 1920(H)x1080(V) |
| Scanning system | Progressive |
| Resolution | 1100TVL |
| Min. Illumination | Color:0.2 lux, B/W:0.05,F1.2/0Lux(IR on) |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| DigitalSlow Shutter | Off/Low/Middle/High |
| S/N Ratio | 50dB（AGC OFF） |
| WDR/BLC | WDR、BLC（D-WDR） |
| DNR (Digital Noise Reduction) | 3D Masks |
| Digital Zoom | x96 |
| Privacy Mask | 32Masks |
| OSD | support |
| Video Output | HD-SDI: SmptE 292,424,425 /CVBS:1.0Vpp,75ohm |
| Lens | 3.6mm board lens |
| Power(Max.) supply | DC12V, Less than 4Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| Dimension | Φ113x85mm |
| weight | 220g |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 20pcs |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | ON TIME DELIEVERY |
| FOB Port | Shenzhen |
| Loading Info | CAN BE SHIPED BY AIR AND SEA |
| Packing Info | WELL PACKED BY CARTON |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
