SUPER MINIATURE 700TVLINE CAMERA
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Day/Night | yes |
|---|---|
| OSD menu | yes |
| S/N Ratio | ≥50dB(AGC OFF) |
| Type | Video Camera |
| Style | Mini Camera |
| Special Features | Other |
| Technology | Pinhole |
| Image Sensor | CCD |
Detail Description

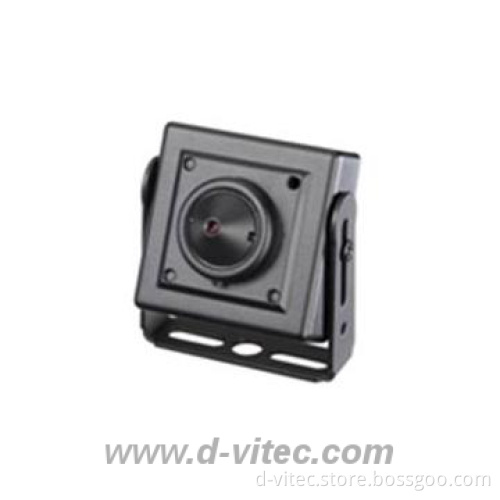

SUPER MINIATURE 700TVLINE CAMERA
Model: DV-330EH series
1、Description
DV-330EH is using SONY SuperExview CCD II and EFFIO-E DSP.
DV-330EH miniature camera series have high resolution video output, unique digital WDR function, 2D Digital Noise Reduction feature. With OSD menu, the camera can be adjusted according to actual situation, full-zinc alloy shell, solid and reliable quality, high stability and reliability;
DV-330EH is suitable especially for education, government, financial systems, post office and other hiding places.
2、Related Items
With pinhole lens: DV-330EHP
With board lens: DV-330EH
3、Features
Model: DV-330EH series
1、Description
DV-330EH is using SONY SuperExview CCD II and EFFIO-E DSP.
DV-330EH miniature camera series have high resolution video output, unique digital WDR function, 2D Digital Noise Reduction feature. With OSD menu, the camera can be adjusted according to actual situation, full-zinc alloy shell, solid and reliable quality, high stability and reliability;
DV-330EH is suitable especially for education, government, financial systems, post office and other hiding places.
2、Related Items
With pinhole lens: DV-330EHP
With board lens: DV-330EH
3、Features
- 1/3’SONY SuperExview CCD II
- Resolution：700TVLines
- Minimum Illumination:0.01 Lux，F1.2
- Digital WDR, Motion detection, privacy
- OSD menu control
- 2D DNR
- DC12V/1A power supply
- Smart size: 30x30x19 mm
| model | DV-330EH |
| mage Sensor | 1/3\" SONY SuperExview CCD II |
| Effective pixels | NTSC: 976（H）×494（V）/PAL:976(H) X582(V) |
| Scanning System | interline-scan H：15.625KHZ V：50HZ |
| Synchronization | Internal Synchro nization |
| Resolution | 700TVL |
| OSD menu | yes |
| BLC | D_WDR/HLC/BLC/OFF |
| Privacy Masking | On / Off (Programmable 8 zones) |
| Motion Detection | On / Off (Programmable 4 zones) |
| DNR | 2DNR |
| Day/Night | yes |
| Gamma | 0.45 |
| S/N Ratio | ≥50dB（AGC OFF） |
| Min. Illumination | 0.01Lux,F1.2 |
| Lens option | 3.7mm (pinhole); 3.6mm (board lens) |
| Gain Control | Auto |
| White Balance | Auto 2500ºK-10000ºK |
| Video Output | CVBS : 1.0Vp-p,75Ωcomposite |
| Input Voltage | DC12V |
| Power Consumption | 1W（Max） |
| Weight | 150g |
| Operating Temp | ﹣10℃～＋50℃ |
| Storage Hum | 30%RH~80%RH |
| Gain Control | Auto |
| Dimension | 30x30x19 mm |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 10pcs |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | ON TIME DELIEVERY |
| FOB Port | Shenzhen |
| Loading Info | CAN BE SHIPED BY AIR AND SEA |
| Packing Info | WELL PACKED BY CARTON |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
