D-WDR colored miniature cameras
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Day&Night | OK |
|---|---|
| WDR | D-WDR |
| Type | Video Camera |
| Style | Mini Camera |
| Special Features | Other |
| Technology | Pinhole |
| Image Sensor | CCD |
Detail Description

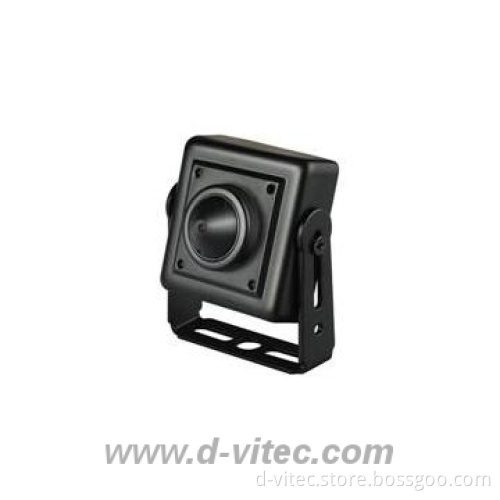

D-WDR colored miniature cameras
DV-330GHP
Introduction
DV-330GHP Series of miniature cameras, using SONY SuperExview CCD II and the latest DSP DV820 d-vitec, 960 h analog output, the more clear picture, super wide dynamic technology, new technology to penetrate the fog, whether sunny strong backlight or rain fog days of gloom, to be able to get good picture。
DV-330GHP Series miniature cameras with OSD menu, can according to the actual situation to adjust the camera parameters, 3.7 mm pinhole wide-angle lens, let DV - 330 GHP series cameras is very suitable for ATM machine out of the money, the money, background monitoring applications, etc。
Features
DV-330GHP
Introduction
DV-330GHP Series of miniature cameras, using SONY SuperExview CCD II and the latest DSP DV820 d-vitec, 960 h analog output, the more clear picture, super wide dynamic technology, new technology to penetrate the fog, whether sunny strong backlight or rain fog days of gloom, to be able to get good picture。
DV-330GHP Series miniature cameras with OSD menu, can according to the actual situation to adjust the camera parameters, 3.7 mm pinhole wide-angle lens, let DV - 330 GHP series cameras is very suitable for ATM machine out of the money, the money, background monitoring applications, etc。
Features
- 1/3’SONY CCD
- level definition：650 line
- minimum illumination：0.05 Lux，F1.2
- D-WDR
- Technology to penetrate the fog
- DC12V power supply
| DV-330GHP | |
| mage Sensor | 1/3\" SONY CCD |
| Total Pixel | 976（H）×582（V） |
| Scanning System | Progressive-scan H：15.625KHZ V：50HZ |
| Synchronization | Internal Synchro nization |
| Resolution | 650TVL |
| OSD Menu | OK |
| WDR | D-WDR |
| Through the fog | OK |
| DNR | 3D |
| Day&Night | OK |
| Gammar | 0.45 |
| SNR | >50dB（AGC OFF） |
| Min.Illumination | 0.05Lux,F1.2 |
| Lens focal length | 3.7mm |
| Gain Control | Auto |
| White Blance | Auto 2500ºK-10000ºK |
| BLC | On/Off |
| Video Output | 1.0Vpp，75ΩComposite video |
| Power | DC12V |
| Consumed Power | 1W（Max） |
| Weight | 32g |
| Operating temperature | ﹣10℃～＋50℃ |
| Operating Humidity | <90％RH |
| Size | 30x30x14.5mm |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 50pcs |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | ON TIME DELIEVERY |
| FOB Port | Shenzhen |
| Loading Info | CAN BE SHIPED BY AIR AND SEA |
| Packing Info | WELL PACKED BY CARTON |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
