1080P HD-SDI WATERPROOF IR CAMERA
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| DIGITAL ZOON | SECURITY |
|---|---|
| LOW ILLUMINATION | DAY&NIGHT |
| LOW POWER CONSUMER 1.2w | WDR |
| DIGITAL WDR | BLC |
| Type | Video Camera |
| Special Features | Waterproof |
| Technology | Other |
| Image Sensor | CMOS |
| Style | Box Camera |
Detail Description

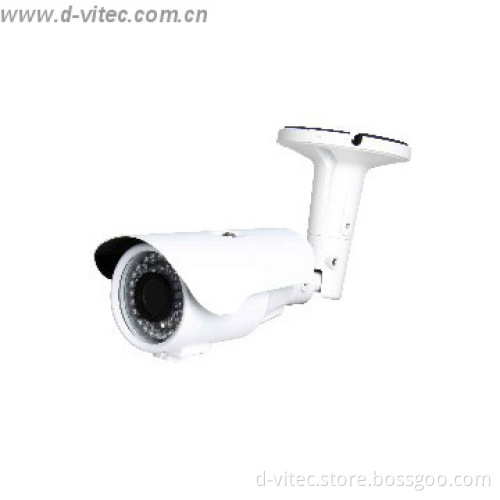

1080P HD-SDI Waterproof IR camera
Model: DV-HD9E774R
1、Description
HD9E734R is using broadcast standard HD-SDI technology, the cameras are as easy using as analog cameras, but can get 720P /1080P HD picture. With excellent low light performance, the screen effect is very superior. 40pcs IR LED, 50M IR distance, with built in ICR, the camera can get true day and night image. DV- HD9774R cameras are suitable for finance, highways, safe cities, prisons and other application.
2、Related Items
1080P: DV-HD9E774R
720P: DV-HD9E773R
3、Features
1080P HD Real-time outputs
HD-SDI outputs Support SMPTE292M、SMPTE424M standard
Low illumination, 3DNR
42pcs LEDs, 50 M IR distance
WDR, D-WDR, BLC
Digital Zoom
4、Specification
| Model number | DV-HD9E773R |
| Image sensor | 1/3” Panasonic CMOS(MN34041PL) |
| Total Pixel | 2010(H)x1108(V) |
| Active Pixel | 1920(H)x1080(V) |
| Scanning system | Progressive |
| Resolution | 1100TVL |
| Min. Illumination | Color: 0.2 lux, B/W:0.05,F1.2/0Lux(IR on) |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| DigitalSlow Shutter | Off/Low/Middle/High |
| S/N Ratio | 50dB（AGC OFF） |
| WDR/BLC | WDR、BLC（D-WDR） |
| DNR (Digital Noise Reduction) | 3D Masks |
| Digital Zoom | x96 |
| Privacy Mask | 32Masks |
| OSD | support |
| Video Output | HD-SDI: SmptE 292,424,425 /CVBS:1.0Vpp,75ohm |
| Lens | 3.6mm Board Lens |
| Power(Max.) supply | DC12V, Less than 6.5 Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| Dimension | 272x100x98mm |
| weight | 500g |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | 7-10days after receiving deposit. |
| FOB Port | Shenzhen |
| Loading Info | BOTH OF BUCK AND DETAIL ARE ACCEPTABLE |
| Packing Info | PACKED BY CARTON.SAFE |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
