720P HD-SDI WATERPROOF IR CAMERA
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| LOW ILLUMINATION | DAY&NIGHT |
|---|---|
| LOW POWER CONSUMER 1.2w | WDR |
| DIGITAL WDR | BLC |
| DIGITAL ZOON | SECURITY |
| Type | Video Camera |
| Special Features | Waterproof |
| Technology | Other |
| Image Sensor | CMOS |
| Style | Box Camera |
Detail Description

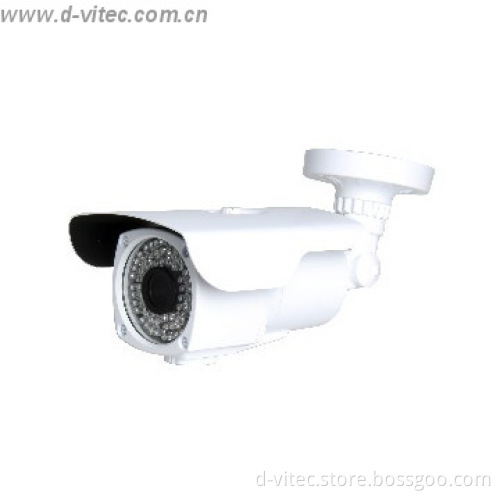

720P HD-SDI Waterproof IR camera
Model: DV-HD9E133R
1、Description
DV-HD9E133R is using broadcast standard HD-SDI technology, the cameras are as easy using as analog cameras, but can get 720P HD picture. With excellent low light performance, the screen effect is very superior. 72pcs IR LED, 70M IR distance, with built in ICR, the camera can get true day and night image. DV- HD9133R cameras are suitable for finance, highways, safe cities, prisons and other application.
2、Related Items
1080P: DV-HD9E134R
720P: DV-HD9E133R
3、Features
720P HD Real-time outputs
HD-SDI outputs Support SMPTE292M、SMPTE424M standard
Low illumination, 2DNR
72pcs LEDs, 70 M IR distance
BLC
4、Specification
| Model number | DV-HD9E133R |
| Image sensor | 1/3\" Porgressive scan sensor |
| Total Pixel | 1312(H)x740(V) |
| Scanning system | Progressive |
| Min. Illumination | Color: 1.0 lux, B/W:0.5,F1.2/0Lux(IR on) |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/90,000 sec) |
| S/N Ratio | 40dB（AGC OFF） |
| DNR (Digital Noise Reduction) | 2D Masks |
| HL Mask | 16Masks |
| OSD | support |
| Video Output | HD-SDI: SmptE 292,424,425 /CVBS:1.0Vpp,75ohm |
| Lens | 3.6mm Board Lens |
| Power(Max.) supply | DC12V, Less than 9Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| Dimension | 320x130x115mm |
| weight | 680g |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | 7-10days after receiving deposit. |
| FOB Port | Shenzhen |
| Loading Info | BOTH OF BUCK AND DETAIL ARE ACCEPTABLE |
| Packing Info | PACKED BY CARTON.SAFE |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
