720P HD SDI MINI IR Metal Dome CAMERA
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Resolution | 1100 Lines |
|---|---|
| color | white |
| Sensor | Panasonic CMOS(MN34041PL) |
| Active Pixel | 1920(H)x1080(V) |
| Lens | 3.6mm Mega Pixel |
| Type | Video Camera |
| Style | Dome Camera |
| Special Features | Vandal-proof |
| Image Sensor | CMOS |
| Technology | Infrared |
Detail Description

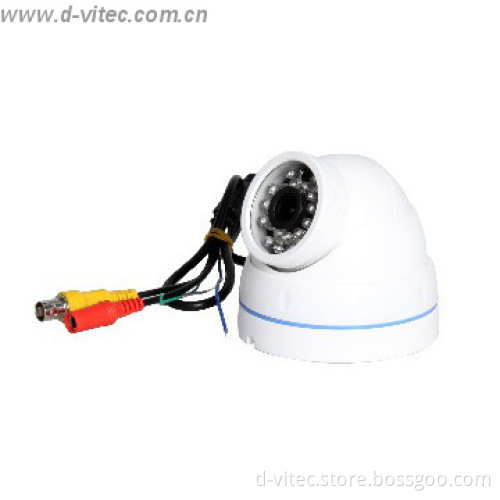

720P HD-SDI Mini IR Dome camera
Model: DV-HD8E933
1、Description
DV-HD8E933 is using broadcast standard HD-SDI technology, real time, the cameras are as easy using as analog cameras, but can get 720P HD picture. With excellent low light performance, the screen effect is very superior. 24pcs IR LED, 30M IR distance, with built in ICR, the camera can get true day and night. This camera can be used for private monitoring, supermarkets, schools and other surveillance applications.
2、Related Items
1080P: DV-HD8E934
720P: DV-HD8E933
3、Features
720P HD Real-time outputs
HD-SDI outputs Support SMPTE292M、SMPTE424M standard
Low illumination, 2DNR
24pcs LEDs, 30 M IR distance
Low power comsumer1.2W（100mA）
BLC
Digital Zoom
4、Specification
| Model number | DV-HD8E934 |
| Image sensor | 1/3” Panasonic scan sensor |
| Total Pixel | 1312(H)x740(V) |
| Active Pixel | 1280(H)x720(V) |
| Scanning system | Progressive |
| Resolution | 900TVL |
| Min. Illumination | 1.0 lux, B/W:0.5,F1.2/0Lux(IR on) |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| S/N Ratio | 40dB（AGC OFF） |
| WDR/BLC | BLC |
| DNR (Digital Noise Reduction) | 2D Masks |
| OSD | support |
| Video Output | HD-SDI: SmptE 292,424,425 /CVBS:1.0Vpp,75ohm |
| Lens | 2.8-12mm Board lens |
| Power(Max.) supply | DC12V, Less than 4.5Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| Dimension | Φ93x91mm |
| weight | 550g |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 14 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
