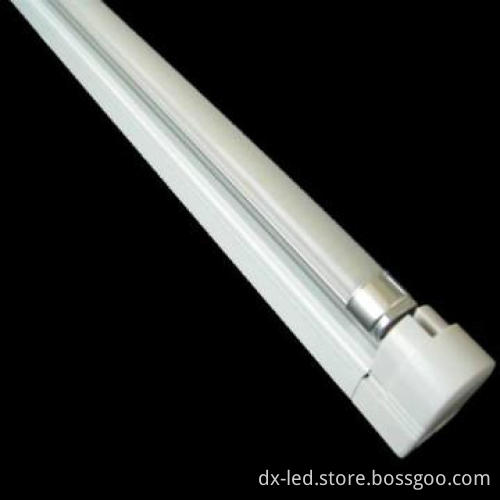

T5 tube, 900mm, High Lumen, Frosted Cover, CE, RoHS and FCC App
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Voltage | AC100-240V |
|---|---|
| Life | 50000h |
| Package | Yes |
| Tube Diameter | T5 |
| Color Tones | Natural White |
| Illuminant | SMD |
| Length | 90cm |
| Power | 10W |
Detail Description
T5, 900mm, frosted cover, SMD 3528, 144 LEDs, aluminum bulkhead, Ra 70, 2700K-7000K.
Main Specifications:
Dimension:
External Structure:
A. PC cover B.Al-base C.Silicone thermal pad (ZSA) D.D-shape Aluminum slot E.PC cover with power supply F. Power supply
Technical Parameters
| Model |
Length (mm) |
SMD Type |
Cover |
Power (W) |
Flux (lm) |
LED Quantity |
Beam Angle |
Ra |
CCT (Optional) |
Illuminance (1m) |
Illuminance (2m) |
Traditional Tube |
| DX-T5-900FCGEH | 849 | 3528 | frosted | 10W | 750 | 144 | 140o | 70 | 2700-7000K | 250 lux | 90 lux | 21W |
Application:
1).Lighting in government organizations, office buildings, big supermarkets, subways, airports, underground garages, hospitals, schools, libraries, conference rooms, hotels, factories and other public places.
2).Lighting in house furnishing, living rooms, study rooms, aisles, elevators and other indoor places.
3).Lighting of advertising lighting boxes, billboards and signs, KTV and bars etc.
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 500 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Goods will be delivery on time after order is available. |
| FOB Port | Shenzhen |
| Loading Info | By air or express. |
| Packing Info | Packing by bubble cotton and carton. |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
