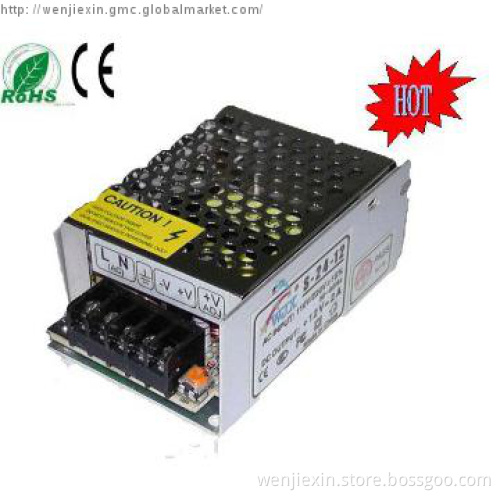

Wholesales power supply 12V2A

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

DC output voltage	24V
Output voltage tolerance	±1%
Rated output current	1A
Output current	0.1~2A
Output power	24W
Ripple and noise	100mVp-p
DC adjustable range	±10%
Setup rise hold up time	200ms,50ms,30ms
Input	Input voltage range	85~132VAC 170~264VAC,47~63Hz, 240~370VDC
AC input current	0.8A/115V 0.45A/230V
Efficiency	85%
AC inrush current	Cold start current 18A/115V 36A/230V
Leakage current	smaller than 0.5mA/240VAC
Protection characteristic	Over load protection	105%~150%rated output power start the over load protection
Protection mode : cut off the output,auto-recovery
Over-voltage protection
Environment	Working temperature	-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)
Security	Withstand voltage	Between input and output::1.5KVAC The input and ground : 1.5KVAC The output and ground :0.5KVAC
Insulation resistance	Between input and output: The input and ground, the output and ground: 100M 0hms /500VDC
Others	Weight/Packing	0.144kg/200PCS

Payment Terms	L/C, T/T, Western Union
Minimum Order	100
Lead Time / Delivery Time	2 Day(s)
Sample Available	YES
Delivery Details	Required payment and delivery.
FOB Port	Shenzhen
Loading Info	EMS/DHL/UPS/TNT/FEDEX
Packing Info	200 pcs/cartonHot sealed for each PE bag.White paper box for each item.Standard quality exported carton. Shipping marking .labels are remade.
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
