SUDA CNC woodworking router wood engraver
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Head | 4 heads |
|---|---|
| Spindle power | 1kw |
| Transmission guide | Square |
| Weight | 800kg |
| Total Power | 500w |
| Use | Woodworking |
| Power Voltage | 380V |
| Style | Horizontal |
| Cnc | Yes |
| Type | Wood Milling Machine |
Detail Description

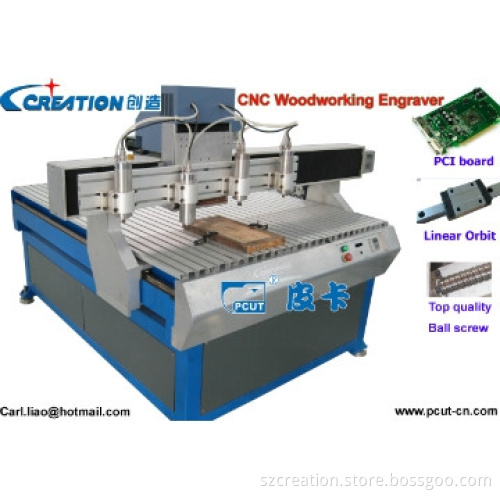

Wooding working engraving machine
-It has four spindles, so can do four working at the same time.
-It is good at working on wood products: wooded bed, wooden chair, wooden door, wooden artwork ect.
-Square shaped track, very precise.
-High speed: max speed is 20 meters per minutes
-Very stable, low malfunction
Model MJ1313
Woodworking CNC router
Model |
MJ1313 |
|
Table size(mm) |
1400*1921 |
|
X,Y,X working Area(mm) |
1300*1300*100 |
|
Operation system |
Double DSP processor, googal system inside |
|
Controller memory |
1G |
|
Max rapid traverse |
20m/min |
|
Max engraving speed |
17m/min |
|
Mechanical resolution |
±0.04 |
|
Repeatability Resolution |
±0.04 |
|
Max feeding height |
150mm |
|
Motor driver |
Stepper motor |
|
Consumption/without spindle(w) |
1KW |
|
Spindle/clamp(w) |
0.8KW/Φ3.175 for each |
|
Rotation Speed(rpm) |
600-24,000 |
|
Interfact |
USB |
|
Memory |
Unlimited |
|
Protocol |
HP-GL,G-code 3D protocol |
|
Operation environment |
Temperature:+5°C~+35°C;Relative humidity:30%~75% |
|
voltage |
AC220V±10% 50HZ |
|
Weight |
700kg |
|
Dimension(W*D*H) |
1960*1921*1540mm |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Woodworking |
| FOB Port | Shenzhen |
| Loading Info | By sea |
| Packing Info | wooden case |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
