CNC engraving machine with Vaccum table and dust extractor
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Brand | Creation PCUT |
|---|---|
| Total Power | 380w |
| Weight | 350kg |
| Type | Woodworking Machine |
| Use | Woodworking |
| Power Voltage | 220V |
| Style | Horizontal |
| Cnc | Yes |
Detail Description

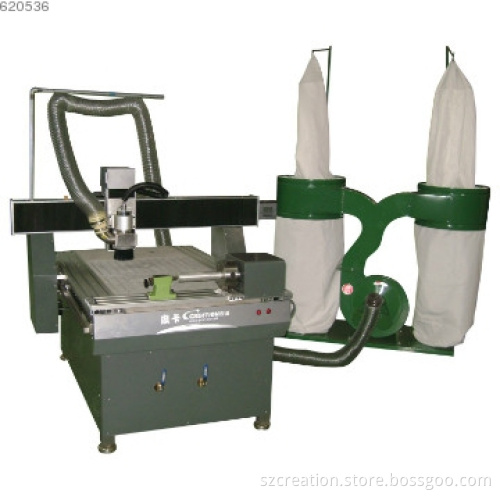

CNC engraving machine with vaccum table and dust collector
*DSP system
*Gear transmission
*Top quality material
*Vaccum table
*dust collector
Model |
CTE 8090G |
Table size(mm) |
900*1270 |
|
X.Y.Z working area (mm) |
800*900*90 |
|
Max rapid traverse (mm/min) |
16m |
Max engraving speed(mm/min) |
12m |
Mechanical resolution(mm) |
0.05 |
repeatability resolution(mm) |
0.05 |
Max feeding height(mm) |
100 |
Motor driver |
Micro - step |
|
Power consumption/ without spindle(w) |
300 |
Spindle /clamp (KW) |
1.5 KW/6,3.175 |
rotation speed(rpm) |
600-24000 |
controller |
DSP 100HZ |
Software working |
WINDOWS98/2000 |
interface |
Serial port (Work with computer directly) |
Protocol |
3D protocol(HP-GL,G-code) |
Memory storage |
Limitless |
Operation environment |
temperature:+5°C~+35°C;relative humidity:30%-75% |
Power voltage |
AC220V±10% 50HZ |
Weight(KG) |
260 |
Dimension(W*D*H/MM) |
1405*1151*1200 |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 UNIT |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | On time |
| FOB Port | Shenzhen |
| Loading Info | by sea, LCL |
| Packing Info | wooden case |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
