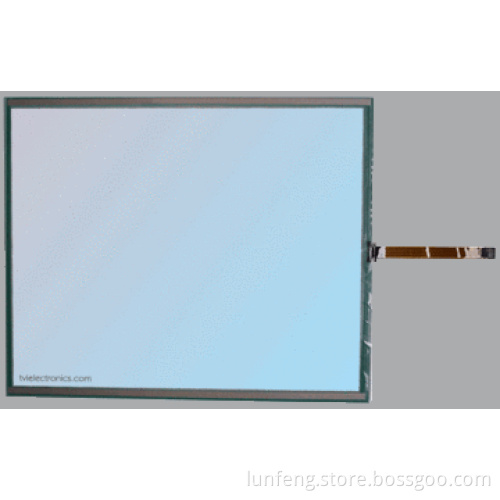

6.5 inch 4 Wire Resistive Touch Screen

Detailed Product Description

6.5 inch 4 wire resistive touch screen panel:

Response Time: 35 ms
Aplication:GPS, Industrial Equipments, Kiosks, Medical, POS.
7 inch 4 wire resistive touch screen panel used in Industrial Equipment advantages:
Good quality, competitive price, light weight, thin thickness
installation and connection convenience, transparency, High-gloss , Long lifetime
Finger, gloved hand and stylus activation
Contaminant proof and liquid resistance
High accuracy and durability
High resolution and sensitivity.



Application Occasion: GPS (global position system) equipment, mobile phone, PDA, FHKD(VMIC, CRESUN), learning laptop, recreational machines

7 inch 4 wire resistive touch screen panel Key Specifications/Special Features:
 1.1 Environmental characteristics

NO.	Item	Specification
1	Operation temperature	-20°C~+50°C
2	Storage temperature	-30°C~+85°C



1.2 Electrical characteristics

NO.	Item	Specification	Remarks
1	Rated Voltage	DC 5V 25mA
2	Linearity	≤1.5%	Load 120gf
3	Resistance	Film side: 200Ω~1250Ω	FPC At connector
Glass side:100Ω~500Ω
4	Insulation Resistance	≥20 MΩ	DC 25V


1.3 Mechanical characteristics

NO.	Item	Specification	Remarks
1	Operating force	20-120g	R0.8
2	Hardness of surface	≥3H	JISK5400
3	Light Transmission	≥80%
4	FPC Bending	Bend radius 1.0mm,above 3 times	Content 3.2
5	FPC peeling strength	Horizontal direction 180degree,0.5kgf Will not peel within 10 minutes	Content 3.2



Infrared touch screen technology parameters
Resolution
 4096*4096
Scan rate(scans/s)
 50scans/s
Transmittance
 more than95,Last can to 100%
Touch the smallest body
 more than 5mm
Response speed
 “S”more than 5ms “M”more than16ms “L”more than 16ms
Durability
 Bear more than 60,000,000 single point touch
Surface hardness
 7 Mohs
Power(W)
 less than 1.5W, operating current less than 300mA
Certification Regulation
 CE,ISO 9001 to 2000,ROHS,FCC
