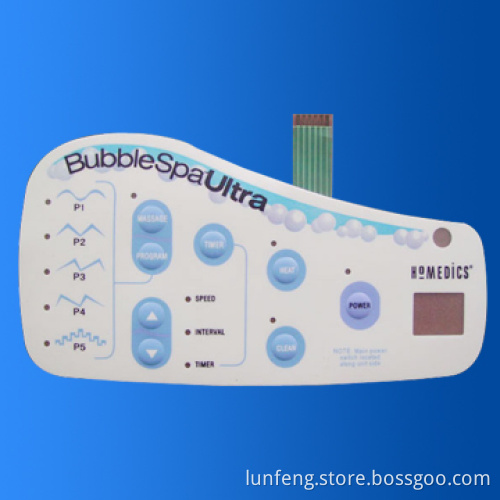

Textile type Membrane Switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Membrane keypad Key Specifications/Special Features:

Material: matte PC (smooth), gloss PC + matte oil, gloss PC, matte PET, gloss PET
Thickness: 0.05---1.0mm
LED windows: transparent, translucent, matte
Embossed keys: no embossed keys and domes, domes without embossed keys, embossed keys without domes, embossed keys and domes
Adhesive: 3M9448, 3M9080, 3M467, 3M468, and no adhesive
Tail: tail with clear mask or green mask
Specialize in manufactuing membrane keypad:
Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape
EL backlight+Rubber keys
Aluminum plate+Rubber keys
Metal domes
Flat without Tactile Effect
Embossing with Tactile Effect
Embossing with Metal Dome
Membrane Switch with FPC

Performance indicators:

Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: flat type ≥ 5 million times, tactile type: ≥ 1 million times
Mechanical Properties Actuation force: flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm
Environmental parameters
Operating Temperature: -40 C- +80 C, Storage temperature: -40 C - +85 C
Humidity: 40C, 90% -95%, 240 hours

Payment Terms	T/T, L/C, D/A, D/P, Western Union, Others
Minimum Order	500PCS
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe
