CE Certification Wireless Ceiling PIR Detectorn with Pet Immunity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Pet Immunity	Under 25 Kg
Usage	Ceiling PIR Detector
DIY Concept	Easy to Install and Operation
Alkaline Battery	AA LR6 1.5V x 2pcs
Wireless Frequency	433MHz / 868MHz
Usage	Auto, Fashion Shop, Home, Other, Supermarket

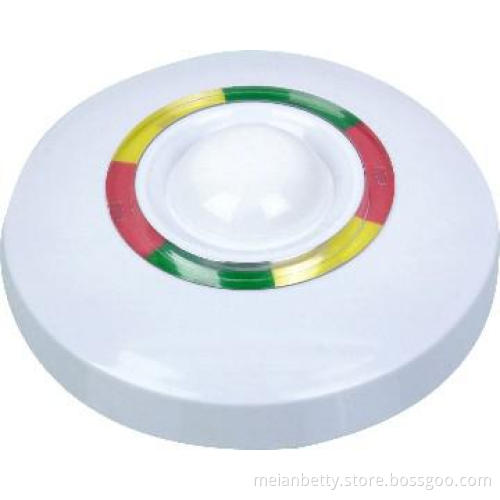

PE-7204P – Wireless PIR Ceiling Detector / Pet Immunity

1. Adpots self-designed MASK chip with DMT technology

2. Low power consumption, built-in big capacity batteries

3. Detection distance: diameter 10m@25°C / Detection angle: 360°

4. Pet Immunity under 25kgs

5. Wireless Emitting Frequency is 433MHz / 868MHz

6. Anti-EMI >30V/m(30MHz~1GHz) / Anti-white Light >8000LUX

7. Consumption Current is 9uA(static)/20mA(alarm)

	PE-7204P	PE-7204B
Detection	PIR	PIR/MW
MW Frequency	/	10.525GHz
Working Voltage	3VDC	6VDC
Consumption Current	9uA(static)/20mA(alarm)	25uA(static)/20mA(alarm)
Tamper	Yes	Yes
Auto Temperature Compensation	Yes	Yes
Self-testing	Yes	Yes
Low-voltage testing	Yes	Yes
Status Report	Yes	Yes
Pulse Option	Yes	Yes
Emitting Frequency	433MHz/868MHz	433MHz/868MHz
Anti-white light	>8000LUX	>8000LUX
Anti-EMI	>30V/m(30MHz~1GHz)	>30V/m(30MHz~1GHz)
Installation	ceiling mounting	ceiling mounting
Installation Height	1.2~2.4m(wall)/2.5~4.8m(ceilling)	1.2~2.4m(wall)/2.5~4.8m(ceilling)
Pet Immunity	25kgs	/
Dimension	Φ 110 x 40mm	Φ 110 x 40mm

Payment Terms	T/T, Western Union
Minimum Order	20
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	A week within we receive your downpayment.
FOB Port	Shenzhen
Loading Info	any way you want
Packing Info	refer to the packing list
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
