Wireless Outdoor Wall Mounting Burglkar Detector For Outdoor Use
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| PIR + MW | 2 Dual PIR + 2CH Microwave |
|---|---|
| Pet Immunity | under 25kgs |
| Waterproof | IP65 Rating |
| Wireless Detect Range | up to 15m - 27m based on Frensal Lens fitted |
| Wireless Frequency | 433MHz / 868MHz |
| Usage | Auto, Fashion Shop, Home, Other, Supermarket |
Detail Description

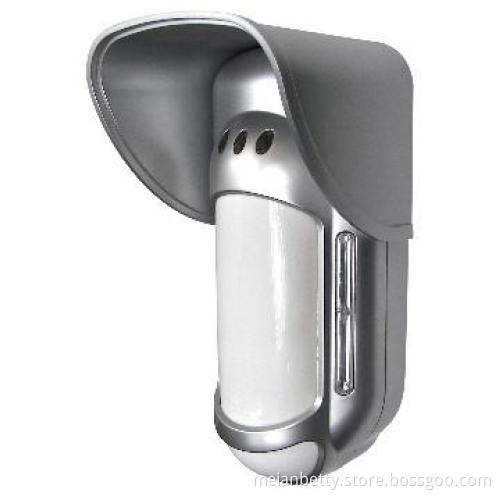

Outdoor PIR Detector with 2 dual PIR and 2CH Microwave
PE-7102B
is wireless / wired compatible, 2 dual PIR and Microwave digital technology, adopts self designed mask with DMT technology (anti masking function), digital pulse count adjustable, auto temperature compensation and energy analysis, pet immunity under 25kgs, excellent false alarm prevention with look down window to aviod blind corner, Microwave anti collision feature that enables detectors to be installed adjacently or face to face without interference, unique waterproof design, adopts refined frensal lens, uses IR leading wave technology to reach real physical area superposition of PIR and MW areas, the best choise for indoor/outdoor intrusion detector for military, industrial, commercial, residential areas.
Features:
- 2 dual PIR + MW digital technology
- adopts self designed mask with DMT technology – anti masking function
- digital pulse count adjustable for each PIR detection separately
- pet immunity < 25kgs
- detect range up to 15m – 27m based on frensal lens fitted (Frensal lens model RL300F – 15m/25°; RL300B – 12m/110°; RL-300 – 15m/110°; RL300LR – 27m/15°)
- alarm indication LED (red light) / pretrigger single indication LED (green light)
- unique waterproof design IP 65 rating
- built-in anti remove button / anti-white light switch
- anti -EMI >30v/m( 30mhz-1ghz) / anti white light:>15000 lux
- wiring indication when connect with external power adapter or control panel
- wireless emitting / receiving distance 200m (in open area)
- wireless emitting frequency: 433MHz / 868MHz
- working voltage: 6vdc
- built-in 5pcs 1.2V/1000mA rechargeable Ni-MH battery (optional, standard package not included battery)
- adjustable bracket to match different detect angle requirement
- external power adapter - consumption current is ≤18mA (static) / ≤30mA (alarm)
- built-in Ni-MH battery - consumption current is ≤18mA (static) / ≤80uA (alarm)
- installation height 0.8m-2.4m / installation/wall/pole/barrier mountable with wide rotation design range
- working temperature: -10 c- +50c
- dimension is 220*100*120mm / ivory white color
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 20 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | a week within we receive your downpayment |
| FOB Port | Shenzhen |
| Loading Info | anyway you want |
| Packing Info | refer to the packing list |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
