24*1W high power Led Wall Washer
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| IP Rating: | IP65 |
|---|---|
| Lighting source: | High power LED |
| Application: | tunnel,graden,market exhibition |
| Projection Distance: | 10-20m |
| Control mode | RGB controller |
| IP | IP65 |
| Voltage | 24V |
| Material | Aluminum, Aluminum Die Casting |
| Application | Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
| Light Source | LED |
Detail Description
24*1W Led Wall Washer series
| Part No. | Size | Color | Voltage | LEDs | IP Rank |
| HX-SQ-24*1W-220V | 302*226*170mm | W | AC90-265V | 24*1W | IP65 |
| HX-SQ-24*1WW-220V | WW | ||||
| HX-SQ-24*1R-220V | R | ||||
| HX-SQ-24*1G-220V | G | ||||
| HX-SQ-24*1B-220V | B | ||||
| HX-SQ-24RGB-220V | RGB | R8/G8/B8 |
36*1W DMX Led Wall Washer Series:
| Part No. | Size | Color | Voltage | LEDs | IP Rank |
| HX-SQ-36*1W-220V | 302*226*170mm | W | AC90-265V | 36*1W | IP65 |
| HX-SQ-36*1WW-220V | WW | ||||
| HX-SQ-36*1R-220V | R | ||||
| HX-SQ-36*1G-220V | G | ||||
| HX-SQ-36*1B-220V | B | ||||
| HX-SQ-36RGB-220V | RGB | R12/G12/B12 |
18*3W DMX Led Wall Washer Series:
| Part No. | Size | Color | Voltage | LEDs | IP Rank |
| HX-SQ-18*3W-220V | 302*226*170mm | W | AC90-265V | 18*3W | IP65 |
| HX-SQ-18*3WW-220V | WW | ||||
| HX-SQ-18*3R-220V | R | ||||
| HX-SQ-18*3G-220V | G | ||||
| HX-SQ-18*3B-220V | B | ||||
| HX-SQ-18*3RGB-220V | RGB | R6/G6/B6 |
Notice for installation
1. Used for indoor or outdoor, working environment: -20°C~45°C.
2. Single color wall washer only need power supply; RGB color will need RGB controller and power supply.
3. For 1m wall washer: add a RGB amplifier every 3pcs wall washers.
For 0.5m wall washer: add a RGB amplifier every 6pcs wall washers.
4. Each RGB amplifier needs an outer power supply.When one controller control several wall washers, the sum of the max powers shouldn’t surpass the controller’s rated power ,and can’t surpass the power supply rated power’s 0.8 times.
5. The input and output port should meet the standard requirements, otherwise it will create damage to lighting.
6. The maximum distance between the controller or signal amplifier and the last piece light should not exceed 100 meters
7. Products should be put in the packing cartons if not use. Storage temperature: -20°C~80°C, Humidity: 0-95%, and no harmful gas, burning, exploding or caustic products inside the warehouse. The packing cartons must be at least 20cm higher to the floor and keep away from the wall, heat, window or gas access at least 50cm.
Trade terms
Payment :By T/T;L/C;Western Union;Paypal
Delivery time:7-10 days after payment usually.
Delivery way:DHL;UPS;TNT;FedEx;EMS
MOQ:10 Pieces
Application
1)Merchandising
2)Recessed lighting
3)Exhibition stands
4)Jewelry and watches shop
5)Home lighting.

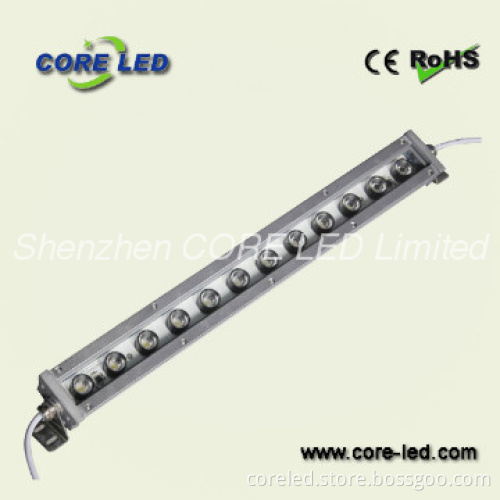

Pictures of DMX LED Wall Washer
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1PCS |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | 5-7day for sample,7-10day for one order! |
| FOB Port | Shenzhen |
| Loading Info | The production at once after receive the payment. |
| Packing Info | normal standard export packing |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
