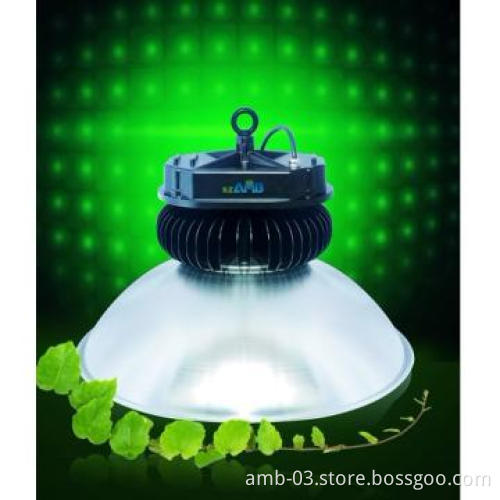

150W LED HighBay with WIFI controlled function, mainly sold in America

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Voltage	AC90-AC305V
Light Sourcing	60mil multi-chip
Flux	15000lumen
Lighting rate	110lumen/w
Grossweight	8kg(312661cm)
Voltage	220V
IP	IP65
Light Source	LED Lamp
Material	Acrylic, Aluminum Die Casting, PC, PMMA

Detail Description

UL/ CE/ RoHS/ SAA/ ETL certified LED high bay, 5 kinds of reflector, different kinds of heat sink, 5years warranty time, Bridgelux 60mil LED
150w COB bridgelux LED High Bay is the best sales products of AMB, We are using top quality and most brightness Bridgelux COB LED, our LED high bay is 130lumen/w , as we are using new material structures, it\'s IP65 and could be used in different applications. besides we pure copper and Japan patent cooling technology .AMB led high bay become the top one in the world . now AMB LED high bay light/LED factory light/LED warehouse light has been widely used in Factory Workshop, Warehouse, UTR Station, petrol station ,Commercial Building, Palaestra like Indoor badminton hall, table tennis hall, car repair garage and decorating shop ,container freight station, construction site and big area etc, where high brightness and dependable illumination is needed.

Model: AMB-3L-150w

No.	1	2	3	4	5
Model No.	AMB-3L-50w	AMB-3L-80w	AMB-3L-100w	AMB-3L-120w	AMB-3L-150w
Power Consumptionb (W)	50	80	100	120	150
LED Initial Flux (LM)	5200	8300	12000	12500	15600
Lamp Flux (LM)	4800	7500	10400	11900	13500
Beam Angle	60°/120°/150°	60°/120°/150°	60°/120°/135°/150°	60°/120°/135°/150°	60°/120°/135°/150°
Input Voltage (VAC)	90-305	90-305	90-305	90-305	90-305
Power Factor (PF)	>0.97	>0.97	>0.97	>0.97	>0.97
Power Efficiency	96%	93%	104%	95.8%	92%
Color	Warm White Cool White	Warm White Cool White	Warm White Cool White	Warm White Cool White	Warm White Cool White
Color Rendering Index (CRI)	Ra75-85	Ra75-85	Ra75-85	Ra75-85	Ra75-85
Working Enviornment	Temperature: -40℃～50℃ Humidity: 10%～90%	Temperature: -40℃～50℃ Humidity: 10%～90%	Temperature: -40℃～50℃ Humidity: 10%～90%	Temperature: -40℃～50℃ Humidity: 10%～90%	Temperature: -40℃～50℃ Humidity: 10%～90%
Material	Aluminum Copper PC	Aluminum Copper PC	Aluminum Copper PC	Aluminum Copper PC	Aluminum Copper PC
IP Rating	IP65	IP65	IP65	IP65	IP65
Working Life (Hours)	>80000	>80000	>80000	>80000	>80000
Product Dimension (mm)	60°: Φ390×280 120°: Φ415×356 150°: Φ580×280	60°: Φ480×525 120°: Φ580×415 150°: Φ580×320	60°: Φ480×525 120°: Φ580×415 150°: Φ580×320	60°: Φ480×565 120°: Φ580×455 150°: Φ580×360	60°: Φ480×565 120°: Φ580×455 150°: Φ580×360
Packing Dimension (mm)	Lamp Body 3kg/unit 2pcs/carton Reflector: 30pcs/carton 610×290×289	Lamp Body 5.5kg/unit 2pcs/carton Reflector: 30pcs/carton 610×310×429	Lamp Body 5.9kg/unit 2pcs/carton Reflector: 30pcs/carton 610×310×429	Lamp Body 7.2kg/unit 2pcs/carton Reflector: 30pcs/carton 610×310×610	Lamp Body 7.5kg/unit 2pcs/carton Reflector: 30pcs/carton 610×310×610
Net Weight/ Gross Weight (Kgs)	3kg/ 3.5kg	5.5kg 6kg	5.9kg 6.5kg	7.2kg 8kg	7.5kg 8kg

Details advantages
Bridgelux 60mil COB chip,7years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: Wifi control +Dimmer function

Saving electricity up to 75% compared to High Bay
Safety enhancement with glass-material
Eco-friendly .No mercury contained
Anti-global warming by reduction of CO2 emission
Low temperature maintained by unique heat dissipation mechanism
Longer Lifetime of 50000~80000 hrs
Warranty period is 5 years from the date of purchase(Om condition
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)
Application:

Widely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, diaplay, backlight and so on.

Comparison of Lifetime:

Pictures	Products name	Life-span compare	Cost compare
	HID high bay	6000hours	7 pieces new HID high bay cost, replacement fee
	AMB LED high bay	50000-80000hrs	5years warranty time No replacement fee

SAVE POWER - SAVE MONEY
LED high bay lights use up to 70% less power than Metal halide lights .lighting makes up a significant portion of the overall power bill for most business

BETTER QUALITY LIGHT
The light from LED is crisp and has better color rendering index (CRI) than most standard metal halide lights ,The light is also flicker free for better working conditions

Longer lasting
LED high bay lights can last up to 6times longer than metal halide .As high bay lights typically require access equipment to replace and maintain, less replacements means less downtime and even greater saving

NO WARM UP
LED high bay lights are at maximum light intensity only seconds after they are switched on, they don’t require the lengthy warm up time of metal halide light. Conventional HID lights also take up to 15 minutes to cool down once they are switched off before they can be switched on again. LED high bay can be switched of and then straight back on, No more delays in the event of momentary power interruption

REDUCE CARBON EMISSIONS
LED high bay lights reduce your energy consumption and carbon emissions saving your money whilst also saving the environment

3-5years warranty
LED : 3years warranty time Bridgelux LED model is BXCE4545 , which is 115lumen/w ,
5years warranty time Bridgelux Chip ,its model is BXDC6060 , which is 140lumen/w
Driver : AMB use CLG meanwell driver for 3years warranty time led high bay
AMB use HLG meanwell driver for 5years warranty time led high bay

AMB-3L-150W LED high bay light

Input Voltage	90-305V AC
Power efficiency of driver	95%
LED Consumption	135W
Bridgelux LED life span	80,000Hours
Luminous Flux	12500-14400 lumen
Lighting distribution	Symmetrical Round Spot
Color Rendering Index	>80
Color Temperature	6500K
Beam Angle	60,120,135,150
Metal Halide Equivalent	400W
Working Temperature	-30℃_50℃
IP Rating	IP65
Reflector Type	Plastic Prismatic or Metal Reflector
Dimensions	28cm36cm or 28cm57cm or 28cm*45cm
Weight	7.9kg

Benefits of AMB 150w led high bay VS Typical 400w Metal halide

POWER SAVING
AMB-3L-150W LED high bay light has a typical power consumption of less than 145w versus 450w for a typical metal halide globe and ballast . a saving of up to 70% on your lighting power bill ,this also results in up to a 70% reduction in carbon emissions attributable to lighting and thus reducing any carbon tax liability accordingly

MAINTENANCE
The nominal life span of AMB-3L-150W LED high bay light is 80000Hours ,This is up to 6 times longer than a typical metal halide solution .in most applications of high bay lighting . Access to the lamps is an issue .Re-lamping maintenance costs can be significant as the process usually involves the need to hire access equipment ,as well as close part of the business ‘s operational area during maintenance

EXAMPLE APPLICATION – SAVINGS OVER 5YEARS
200 light fittings in use 10hrs per day ,6days per week calculated over 5years period

	Metal Halide	AMB led high bay	Savings
Power usage cost	$189947	$61205	$128742
Re-lamping cost	$26000	$0	$26000
		Total Savings	$154742

Re-lamping cost calculated at $50 per globe,$500 for access equipment hire and transport, and $300 for labor based on replacement of 10 failed units at a time .
Electricity price based on 12c/KWh in year 1 and 6% increase per year for subsequent years, Example indication only .Actual costs and savings will depend on individual circumstances

NOWARN UP AND HOT RESTRIKE
The AMB-3L-150W LED high bay light is at maximum brightness within seconds of being powered on .It also has no hot re strike delay which means that when on ,It can be turned off and straight back on again without delay ,Conventional metal halide globes require off .time of the gas inside the globe to cool down sufficiently before they can be re started ,this results in a hot re strike (on-0ff-on) time of up to 15-20 minutes making metal halide lights unsuitable for frequently turning on and off .Frequent power cycling also significantly reduces the life span of metal halide lights due to electrode degradation inside the globe .there is no such electrode within an LED and no significant reduction in life span when power cycling

To capitalize on the hot re strike ability of LED .the AMB -3L-150W led high bay light may be coupled with smart control systems of further increase the power savings ,For example ,using translucent roofing panels and ambient light sensors to make use of available natural lighting and automatically switch the high bay lighting on only when required .Alternatively, in some applications ,the high bay lighting may be linked to occupancy sensors such that particular areas are only switched on when in use

Additional Information

Payment Terms	T/T, L/C
Minimum Order	2PCS
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Loading Info	Bulk order By sea, samples order by air .
Packing Info	2pcs / carton Carton size :62cm35cm38cmNet weight : 7.9kgGrossweight : 8.1kg
Target Market(s)	Africa(except Middle East), Eastern Europe, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
