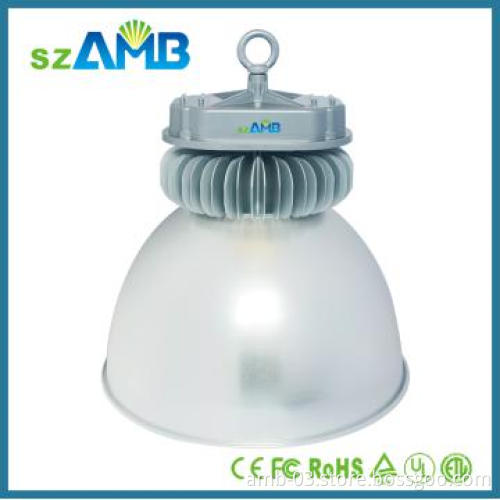

150w LED High bay , 5 years warranty time, IP65

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Voltage	220V
IP	IP65
Light Source	LED Lamp
Material	Acrylic, Aluminum, Aluminum Die Casting, Copper, PC

Detail Description

5years warranty LED Highbay
Copper cooling system: working temp less than 60 celsius
Best LED in the world (60mil): 120-130lumen/watts
Meanwell LED driver: 5years warranty time AC90-305v
Different housing: 60 degree, 120 degree with both Aluminum, acrylic housing
Full color temp range, even with mixture color
Different size: 80w, 100w 150w 180w 200w 200w 250w 300w
ETL/CE (EMC, LVD)/RoHS/FCC/UL Approval
Isolated driver.Remote reach IP65 (water), users can be used drench side

5years warranty LED High Bay
Copper cooling system: working temp less than 60 celsius
Best LED in the world (60mil): 120-130lumen/watts
Meanwell LED driver: 5years warranty time AC90-305v
Different housing: 60 degree, 120 degree with both Aluminum, acrylic housing
Full color temp range, even with mixture color（red+blue)
Different size: 80w, 100w 150w 180w 200w 200w 250w 300w
ETL/CE (EMC, LVD)/RoHS/FCC/UL Approval
Isolated driver.Remote reach IP65 (water), users can be used drench side
Features:
●  Light source:Epistar 60mil LED-best model at the moment ，the bigger size the better quality，but most other factories use 45mil even 38mil LED .
●  Low power consumption
●  High luminosity and long life time
●  Environmentally friendly
●  Excellent opto-electronic performance
●  Optimized heat fins for natural convection
●  High-efficiency cooling system
●  High-efficiency LED power driver ：from Taiwan Meanwell which is 5years warranty time
●  High light transmission PC protection cover

Typical Applications:
●  Warehouse Lighting
●  Garage Lighting
●  Workshop Lighting
●  Public Lighting
●  Parking Lot Lighting
●  Walkway  Lighting
●  Other open spaces lighting

Product Specification

Parameter	Description
Power	150W
Input Voltage	AC85~305V 50/60Hz
Light eFficiency	>90LM/W
Power Factor	>0.98
Total harmonic index	>20%
Flux	13500LM
LED lifetime	>50000H
Operation temperature	-30oC~+50oC
Light Source	High Power LED
Optical Lens	PMMA Optical Lens1
Optical Design	Special Batwing and Asymmetrical Light Patterns
Beam Color	Typical 6000K
Color Rendering Index	Typical 70
Housing	PC
Body Weight	4.9kg
Installation Tube Diameter (OD2)	600 mm (23.6”)
IP Rating	IP 54 for Light Engine & Power Supply

Note:
1. PMMA optical Lens can not be cleaned by organic or acidic solvent. Lens damage caused by
organic or acidic solvent may lead to decrease of light output.
2. OD: Outer diameter

Illumination of the test product:

Test height (Unit: m)	Date (Unit: Lux)
	` Center Point	Edge1
>15000	7790
8680	5484
7615	3807.5
4310	2109
1285	930
1280	710
708.5	560
363	417
205	260
160.5	115

Notes:
1. 60 or 120-degree angle of projection edges of different heights
2. Test environment:
Room temperature 30 degrees
Humidity: 70%
Voltage: AC85-305V 50Hz

Window.parent.CKEDITOR.tools.callFunction( 12, window );

Additional Information

Payment Terms	T/T, L/C
Minimum Order	2PCS
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	7-5 days after we get the payment
FOB Port	Shenzhen
Loading Info	Bulk order By sea .samples order by air .
Packing Info	2pcs / carton Carton size :32cm32cm60cmNet weight :7kgGrossweight :8kg
Target Market(s)	Africa(except Middle East), Eastern Europe, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
