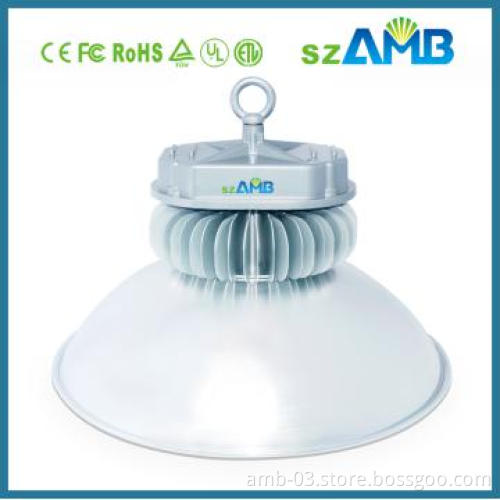

Outdoor lighting LED high bay 80w

•

  5years warranty LED Highbay
• Copper cooling system: working temp less than 60 celsius
• Best LED in the world (60mil): 120-130lumen/watts
• Meanwell LED driver: 5years warranty time AC90-305v
• Different housing: 60 degree, 120 degree with both Aluminum, acrylic housing
• Full color temp range, even with mixture color
• Different size: 80w, 100w 150w 180w 200w 200w 250w 300w
• ETL/CE (EMC, LVD)/RoHS/FCC/UL Approval
• Isolated driver.Remote reach IP65 (water), users can be used drench side

Features:
●  Light source:Epistar 60mil LED-best model at the moment ，the bigger size the better quality，but most other factories use 45mil even 38mil LED .
●  Low power consumption
●  High luminosity and long life time
●  Environmentally friendly
●  Excellent opto-electronic performance
●  Optimized heat fins for natural convection
●  High-efficiency cooling system
●  High-efficiency LED power driver ：from Taiwan Meanwell which is 5years warranty time
●  High light transmission PC protection cover


Typical Applications:
●  Warehouse Lighting
●  Garage Lighting
●  Workshop Lighting
●  Public Lighting
●  Parking Lot Lighting
●  Walkway  Lighting
●  Other open spaces lighting

Product  Specification


Note:
1. PMMA optical Lens can not be cleaned by organic or acidic solvent. Lens damage caused by
organic or acidic solvent may lead to decrease of light output.
2. OD: Outer diameter

• Illumination of the test product:


  Test height  (Unit: m)	Date  (Unit: Lux)
  	` Center Point	Edge1
  >15000	7790
  8680	5484
  7615	3807.5
  4310	2109
  1285	930
  1280	710
  708.5	560
  363	417
  205	260
  160.5	115

  Notes:
  1. 60/120/135/150 degree angle of projection edges of different heights
  2. Test environment:
  Room temperature 30 degrees
  Humidity: 70%
  Voltage: AC85-305V 50/60 Hz
