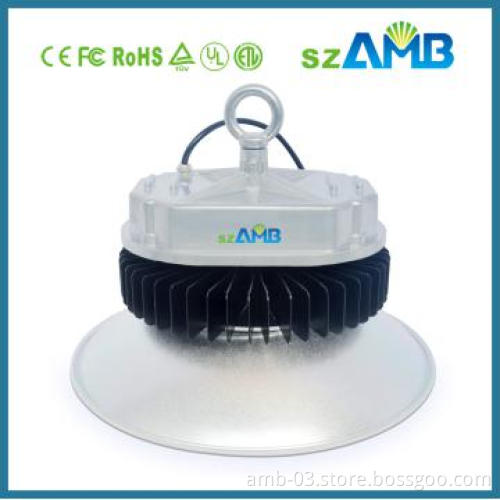

high power 80W LED High Bay with 5 years warranty time
  • high power 80W LED High Bay with 5 years warranty time
high power 80W LED High Bay with 5 years warranty time

high power 80W LED High Bay with 5 years warranty time

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Light Source LED
Voltage 220V
IP IP67
Material Acrylic, Aluminum, Copper

Detail Description

  • 5years warranty LED High Bay
  • Copper cooling system: working temp less than 60 celsius
  • Best LED in the world (60mil): 120-130lumen/watts
  • Meanwell LED driver: 5years warranty time AC90-305v
  • Different housing: 60 degree, 120 degree with both Aluminum, acrylic housing
  • Full color temp range, even with mixture color
  • Different size: 80w, 100w 150w 180w 200w 200w 250w 300w
  • ETL/CE (EMC, LVD)/RoHS/FCC/UL Approval
  • Isolated driver.Remote reach IP65 (water), users can be used drench side
  • Features:
    ●  Light source:Epistar High Power LED
    ●  Low power consumption
    ●  High luminosity and long life time
    ●  Environmentally friendly
    ●  Excellent opto-electronic performance
    ●  Optimized heat fins for natural convection
    ●  High-efficiency cooling system
    ●  High-efficiency LED power driver
    ●  High light transmission PC protection cover


    Typical Applications:
    ●  Warehouse Lighting
    ●  Garage Lighting
    ●  Workshop Lighting
    ●  Public Lighting
    ●  Parking Lot Lighting
    ●  Walkway  Lighting
    ●  Other open spaces lighting

  •  Product  Specification
    Parameter Description
    Power 80W
    Input Voltage AC85~305V  50/60Hz
    Light eFficiency >90LM/W
    Power Factor >0.96
    Total harmonic index >20%
    Flux 7000LM
    LED lifetime >50000H
    Operation temperature -30oC~+50oC
    Light Source  High Power LED
    Optical Lens  PMMA Optical Lens1
    Optical Design  Special Batwing and Asymmetrical Light Patterns
    Beam Color  Typical 6000K
    Color Rendering Index  Typical 70
    Housing  PC
    Weight 4.9kg
    Installation Tube Diameter (OD2) 600 mm (23.6”)
    IP Rating IP 54 for Light Engine & Power Supply
    Note:
    1. PMMA optical Lens can not be cleaned by organic or acidic solvent. Lens damage caused by
    organic or acidic solvent may lead to decrease of light output.
    2. OD: Outer diameter


    Illumination of the test product:
    Test height  (Unit: m)    Date  (Unit: Lux)
    `
    Center Point

     Edge1


    >5000
    3290

    3680
    2340

    2061
    1507.5

    1373
    910

    885
    630

    680
    460

    408.5
    329

    263
    157

    105
    82

    76
    55
    Notes:
    1. 60 or 120-degree angle of projection edges of different heights
    2. Test environment:
    Room temperature 30 degrees
    Humidity: 70%
    Voltage: AC65-305V 50Hz


Additional Information

Payment Terms L/C, T/T, Others
Minimum Order 2PCS
Lead Time / Delivery Time 15 Day(s)
Sample Available YES
Delivery Details 7-15 days after confirming your payment
FOB Port Shenzhen
Loading Info Bulk order By sea, samples order by air and other ways
Packing Info 1pcs / carton Carton size :22cm*32cm*46cmNet weight :4.9kgGrossweight :7kg
Target Market(s) Africa(except Middle East), Eastern Europe, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
