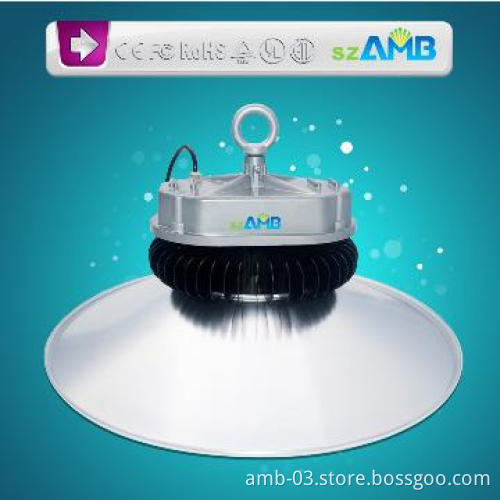

110W/Lm LED High Bay with UL, TUV and Dlc



Additional Info.

Production Capacity:

specificaiotn:

1.LED High Bay copper cooling system: working temperature less than 50 celsius
2.Best Bridgelux or CREE LED from America  (60mil): 130-140lumen/watt
3.Meanwell  driver: 5 years warranty time AC90-305V
4.Different housing: 60 degree, 120 degree with both Aluminum, acrylic housing
5.Full color temperature range, even with mixture color
6.LED High Bay different size:50w  80W 100W 120w 150W 180W 200W 200W 250W 300W
7.Certificaiton: ETL/CE (EMC, LVD)/RoHS/FCC/UL/CSA approval


Features;

1. Patented heat cooling element, new technology and top edge material for heat dispassion system, large proportion to reduce heat. LED working temperature is less than 50 centigrade.
2.Patented three pcs COB LED for AMB LED High Bay, which is famous in the world.
3. Bridgelux or CREE COB light sources are imported from USA.
4. Special optical design makes much more distribution well-proportioned, professional reflector and easy installation.
5. LED driver: We cooperate with Taiwan Meanwell with UL. CSA, CE. SAA. PSE. TUV
6. High-lighting efficacy is more than 90%, long lifetime, high-CRI, constant wattage and more.
7. Environment-friendly, no mercury, no UV or IR radiation and no lead and RoHS directive-compliant.
8. 3 or 5years warranty according to customer\'s request




Application:

Supermarket. Shop. Work shop, Factory, exhibition center, waiting hall, stadium, channel places, etc.




Model NO.:	AMB-3L-150W
Protection Level:	IP65
Input Voltage:	AC90v-240v   or AC90-305v or AC480v 50/ 60Hz
Total flux(LM)	3000k: 135001Lm   4500k: 13950Lm   5500k: 14250Lm  6500k: 14700Lm
Color Temperature	3000k/4500// 5500k/6500k±300k
LED Type and Qty	3 pcs BXCD4545  Bridgelux  COB integrated light source or CREE
Main Material	Aluminum alloy +copper
Appearance	Silver white or black
Adjustable Angle	Fixing angle
Installation	Ceiling/Pendant
