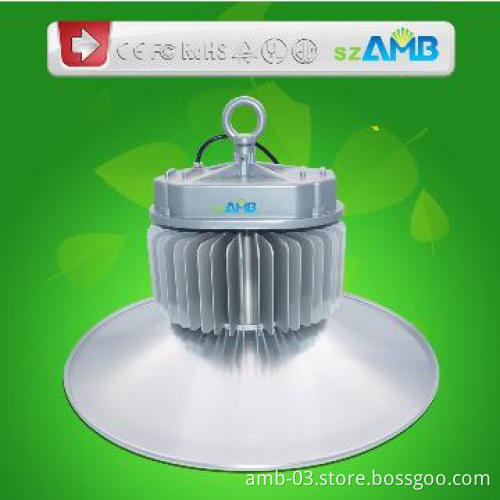

Germany Standard 150W LED High Bay

LED high bay, LED High Bay Lamp with UL, TUV specificaiotn:

LED High Bay copper cooling system: working temperature less than 50 celsius

Best Bridgelux or CREE LED from America  (60mil): 130-140lumen/watt

Meanwell  driver: 5 years warranty time AC90-305V


Different housing: 60 degree, 120 degree with both Aluminum, acrylic housing



Full color temperature range, even with mixture color

LED High Bay different size:50w  80W 100W 120w 150W 180W 200W 200W 250W 300W

Certificaiton: ETL/CE (EMC, LVD)/RoHS/FCC/UL/CSA approval

Features

1. Patented heat cooling element, new technology and top edge material for heat dispassion system, large proportion to reduce heat. LED working temperature is less than 50 centigrade.

2.Patented three pcs COB LED for AMB LED High Bay, which is famous in the world.

3. Bridgelux or CREE COB light sources are imported from USA.

4. Special optical design makes much more distribution well-proportioned, professional reflector and easy installation.

5. LED driver: We cooperate with Taiwan Meanwell with UL. CSA, CE. SAA. PSE. TUV

6. High-lighting efficacy is more than 90%, long lifetime, high-CRI, constant wattage and more.

7. Environment-friendly, no mercury, no UV or IR radiation and no lead and RoHS directive-compliant.

8. 3 or 5years warranty according to customer\'s request

Application: Supermarket. Shop. Work shop, Factory, exhibition center, waiting hall, stadium, channel places, etc.

Products	led high bay ,led high bay light ,led highbay
Item	Parameter
Model	AMB-3L-150W
LED Type and Qty	3 pcs BXCD4545  Bridgelux  COB integrated light source or CREE
Input Voltage	AC90v-240v   or AC90-305v or AC480v 50/ 60Hz
Main Material	Aluminum alloy +copper
Appearance	Silver white or black
Adjustable Angle	Fixing angle
IP Code	IP65
Color Temperature	3000k/4500// 5500k/6500k±300k
Total Power	150w±10%
Total flux(LM)	3000k: 135001Lm   4500k: 13950Lm   5500k: 14250Lm  6500k: 14700Lm
Power efficiency	>95%
Power factor	≥0.98
CRI	3000k: Ra≥80, 4500k: Ra≥75  5500k-6500k: Ra≥70 ,
Beam  Angle	120º± 5º
Efficacy	3000k: 90Lm/w   5000K: 98Lm/w
Luminaire efficiency	>95%
Installation	Ceiling/Pendant
Cartoon Size(mm)	330*29mm*340mm 1PCS/ inner Box 2 inner Box/ Carton  : 610mm*340mm*350mm
Packaging style	Knife card and the peal cotton, Neutral packing for the outer container
Net Weight	7.2kg/ PCS
Gross Weight	7.8kg/ Box
Operating Environment	Operating Environment
HID	<10%
